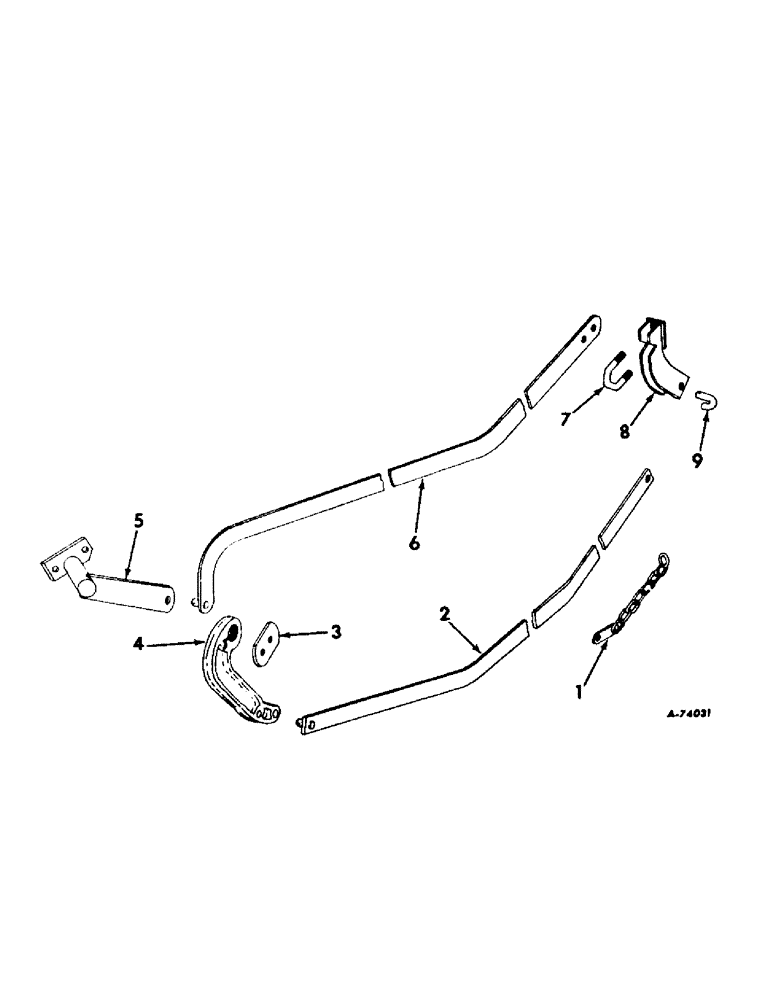

Запчасти Case IH 468 (Y-17) - SIMULTANEOUS LIFT, 1963

1

527030R91

CHAIN (AG)

CHAIN, depth inside gang

1шт.

For use with Farmall 504 tractors

1шт.

1

527030R91

CHAIN (AG)

CHAIN, depth inside gang

2шт.

For use with Farmall 460 and 560 tractors

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 in. rd-hd

2шт.

2

472697R91

LINK ASSEMBLY, lift LH

1шт.

For use with Farmall 504 tractors

1шт.

2

472698R91

LINK ASSEMBLY, lift RH

1шт.

For use with Farmall 504 tractors

1шт.

520172R1

PIN, quick-attachable cotter

2шт.

3

466375R1

CLIP, simultaneous lift arm

1шт.

For use with Farmall 460 and 560 tractors

1шт.

3

466375R1

CLIP, simultaneous lift arm

2шт.

For use with Farmall 504 tractors

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 C-Z in. cap

2шт.

4

466360R1

ARM, simultaneous lift LH

1шт.

For use with Farmall 504 tractors

1шт.

4

466361R1

ARM, simultaneous lift RH

1шт.

For use with Farmall 504 tractors

1шт.

5

467662R91

ARM ASSEMBLY, simultaneous lift LH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

5

467663R91

ARM ASSEMBLY, simultaneous lift RH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

6

472703R91

LINK ASSEMBLY, simultaneous lift LH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

6

472704R91

LINK ASSEMBLY, simultaneous lift RH

1шт.

For use with Farmall 460 and 560 tractors

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

7

520309R1

U-BOLT, lift arm

2шт.

102639

NUT,5/8"-11, G5

4шт.

8

472700R91

ARM ASSEMBLY, simultaneous lift rockshaft

1шт.

9

472696R1

PIN, lift arm

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.
