Запчасти Case IH 468 (Y-13) - SHIELD

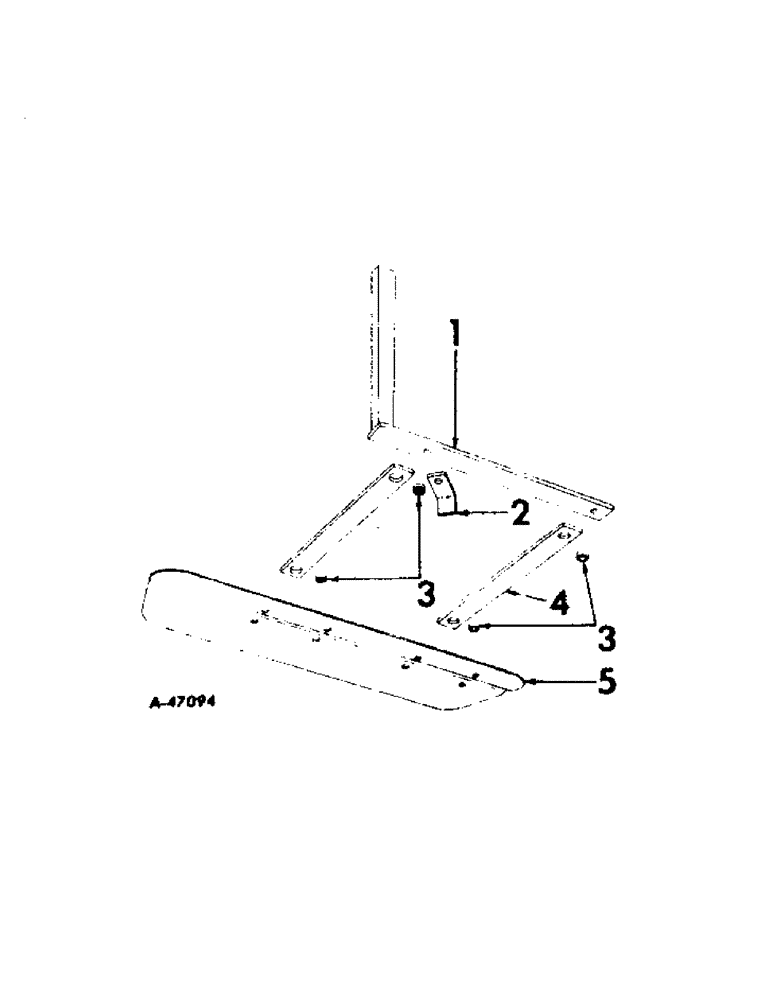

Схема запчастей Case IH 468 - (Y-13) - SHIELD
3
1
4
3
2
5

Артикул

Название

Примечание

Количество

1

464407R91

SUPPORT, shield inner-square part 6-7/8 in. long

1шт.

1

523437R91

SUPPORT, shield outer, square part 9-7/8 in. long

1шт.

1

483269R91

SUPPORT, shield outer, square part is 5-1/2 in. long

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 in. mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

114607

LOCK, Ext Tooth, 7/16"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

4шт.

2

515217R1

SUPPORT

CLIP, adjusting

1шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

513237R1

LINK, inner pivot, offset

1шт.

5

526319R1

SHIELD

left, with 8-7/8 in., 26 in. long

1шт.

5

526320R1

SHIELD

right, with 8-7/8 in. 26 in. long

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

4шт.

102635

NUT,3/8"-16, G5

2шт.

Выбрано товаров: 18
