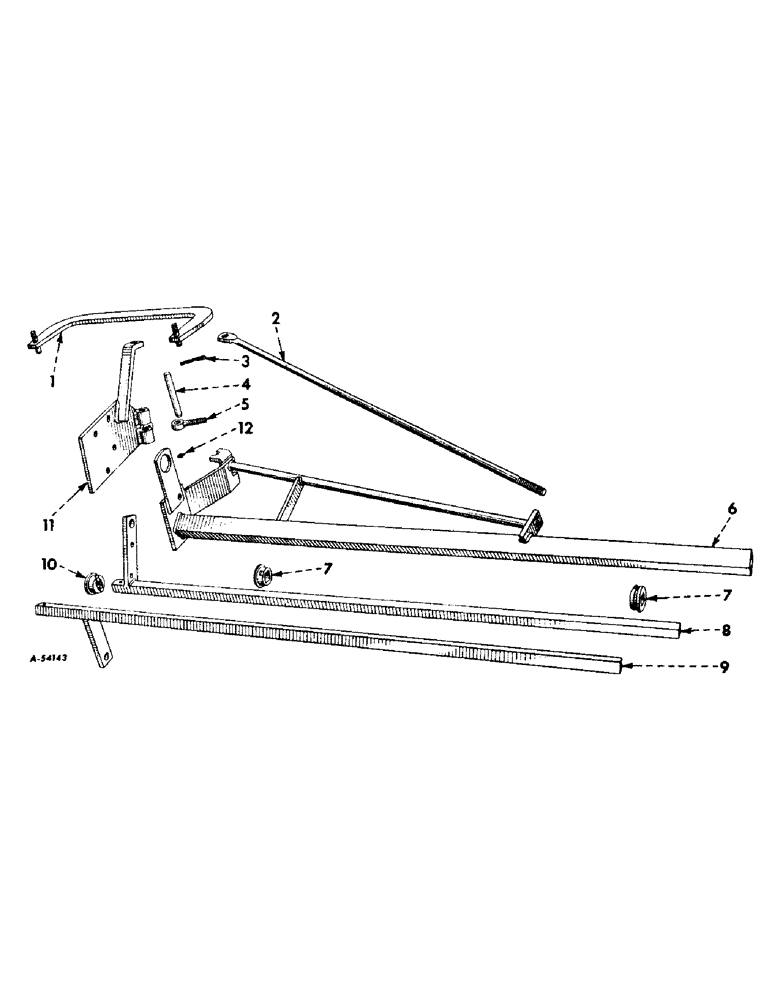

Запчасти Case IH 466 (X-02) - MAIN FRAME AND ROCKSHAFT

1

466353R11

BRACE, tie

61шт.

1

525814R11

BRACE, tie (58)

60шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

525815R1

ROD, truss

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

3

520175R1

CLIP

PIN, quick attachable cotter

1шт.

4

518267R2

PIN, frame hinge, heat-treated

1шт.

5

518952R1

BOLT

EYEBOLT, frame hinge

1шт.

280954

NUT,3/4"-10, G5

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

2шт.

6

525811R91

FRAME, left main

1шт.

6

525812R91

FRAME, right main

1шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4 x 1-1/2 type 1

2шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

2шт.

515806R1

BOLT,Hex, 3/4" - 10 x 2"

SCREW, 3/4 x 2 in. conical, hd cap

6шт.

7

522496R1

BUSHING

BEARING, rockshaft outer

1шт.

8

525865R92

ROCKSHAFT, left lifting, selective lift for Farmall 240 and 340 tractors

1шт.

8

525866R92

ROCKSHAFT, right lifting, selective lift for Farmall 240 and 340 tractors

1шт.

9

525867R91

ROCKSHAFT, left lifting, simultaneous lift for Farmall 240 and 340 tractors

1шт.

9

525868R91

ROCKSHAFT, right lifting, simultaneous lift for Farmall 240 and 340 tractors

1шт.

10

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner

1шт.

103425

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

Q3493

WASHER, 2-9/32 x 3 in. x 14 ga

2шт.

11

466351R11

SUB-FRAME, left

61шт.

11

466352R11

SUB-FRAME, right

61шт.

11

525833R11

SUB-FRAME, left (58)

61шт.

11

525834R11

SUB-FRAME, right (58)

61шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4 x 1-1/2 type 1

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

5шт.

12

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. straight drive base lubrication

1шт.
