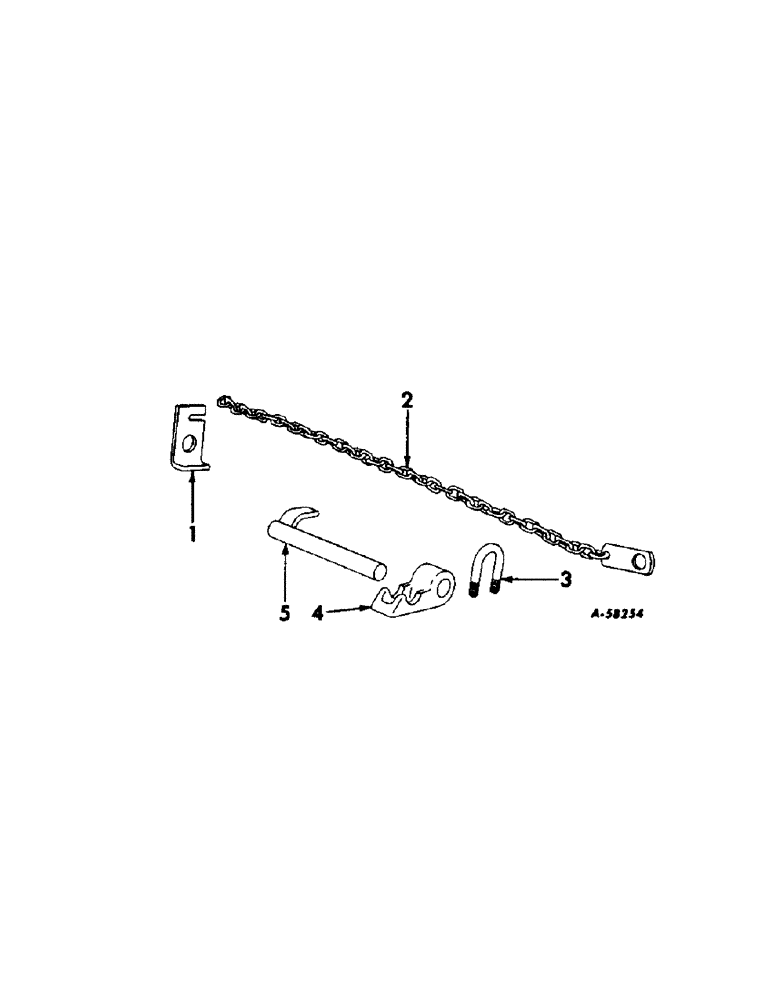

Запчасти Case IH 466 (X-09) - DEPTH CHAIN AND STOPS

1

527031R1

BRACKET, depth chain left

1шт.

For 466 cultivator

1шт.

1

527032R1

BRACKET, depth chain right

1шт.

For 466 cultivator

1шт.

2

527030R91

CHAIN (AG)

CHAIN, w/clip, 40 links no. 2 steel chain

1шт.

For 466 cultivator

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 in. B-hd

1шт.

3

527036R1

U-BOLT, clamp

1шт.

Not used on 466 cultivator

1шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

2шт.

4

527035R11

CLAMP, adjusting

1шт.

Not used on 466 cultivator

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

5

527033R11

ROD, adjusting

1шт.

Not used on 466 cultivator

1шт.
