Запчасти Case IH 465A (W-22) - FIELD ADAPTING PACKAGE

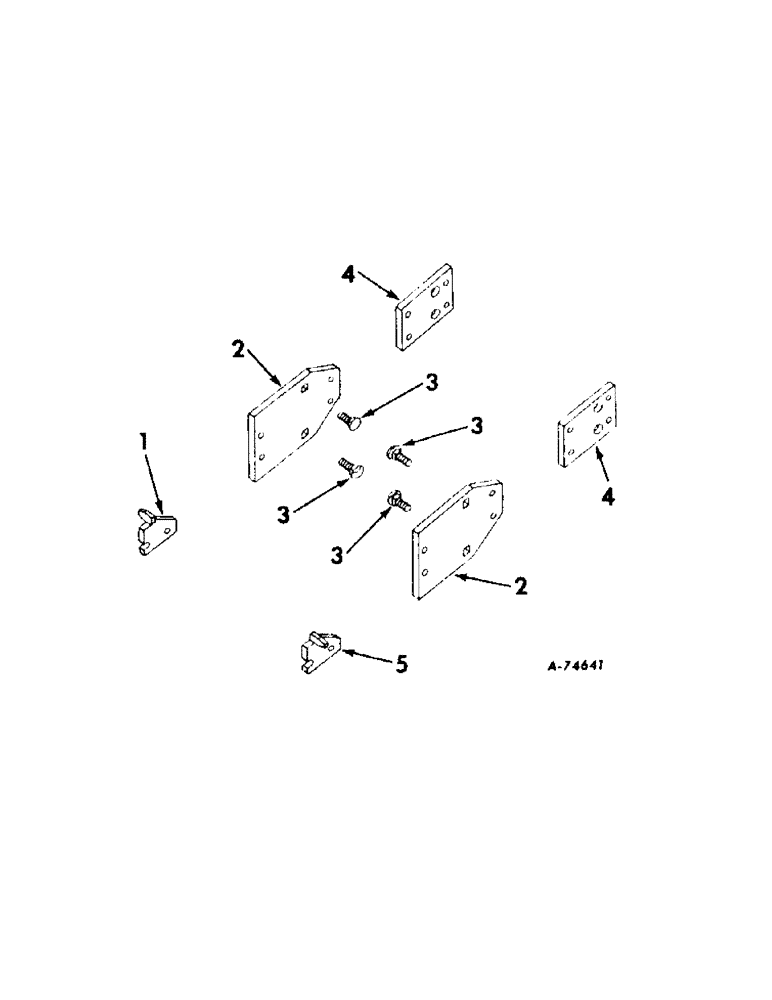

Схема запчастей Case IH 465A - (W-22) - FIELD ADAPTING PACKAGE
4
2
4
3
3
2
1
5
3
3

Артикул

Название

Примечание

Количество

1

466838R91

GUIDE ASSY, frame LH

1шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 crg type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

2

466836R2

PLATE, adapter center

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

589068R1

WASHER

21/32 x 1-1/4 in. x 11 ga, for rear bolt

2шт.

3

466837R1

BOLT, frame plate, 3/4 x 2 in. special

1шт.

280954

NUT,3/4"-10, G5

1шт.

615168R1

WASHER

.781 x 1.500 x .105 pln

1шт.

4

466835R1

PLATE, adapter front

1шт.

NLS

NO LONGER SERVICED

5/8 x 2-1/2 pln type 5

4шт.

5

466839R91

GUIDE ASSY, frame RH

1шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 crg type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

Выбрано товаров: 19
