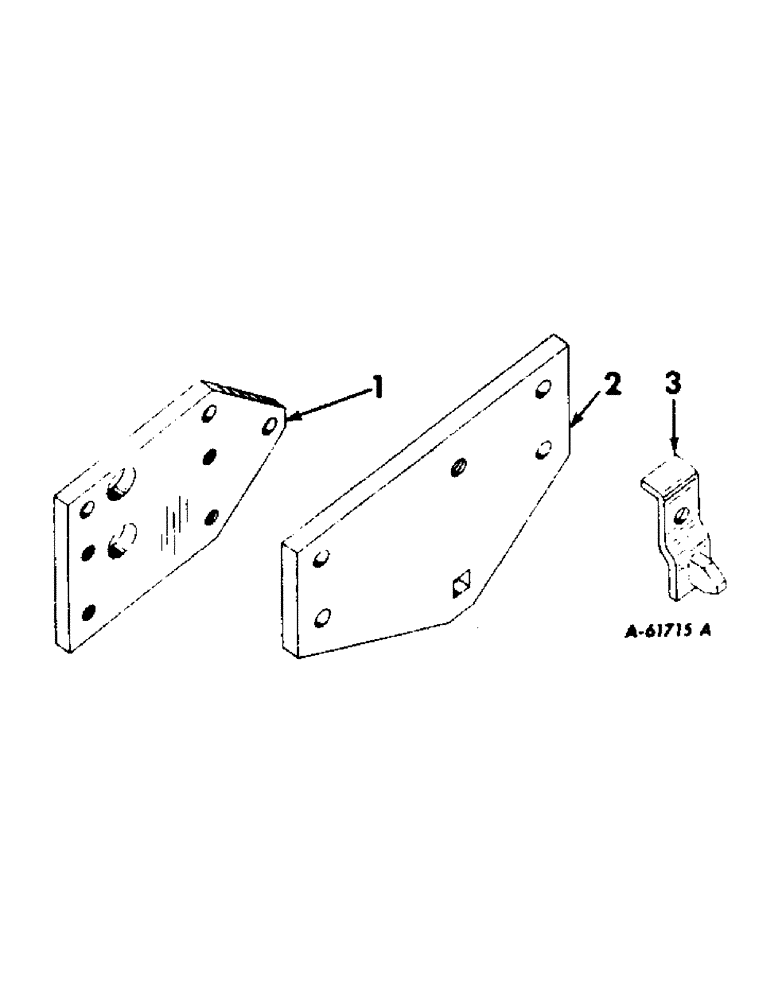

Запчасти Case IH 465A (W-21[B]) - ADAPTING UNIT PARTS REQUIRED TO CHANGE CULTIVATOR OR FRAME TO MIDDLEBUSTER FRAME

1

463215R1

PLATE, adapter front

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

4шт.

2

466842R1

PLATE, adapter rear

1шт.

28623R1

BOLT, 3/4-10 x 2 crg znd type 5

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 type 1

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

280954

NUT,3/4"-10, G5

1шт.

3

463211R91

GUIDE ASSEMBLY, frame

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.
