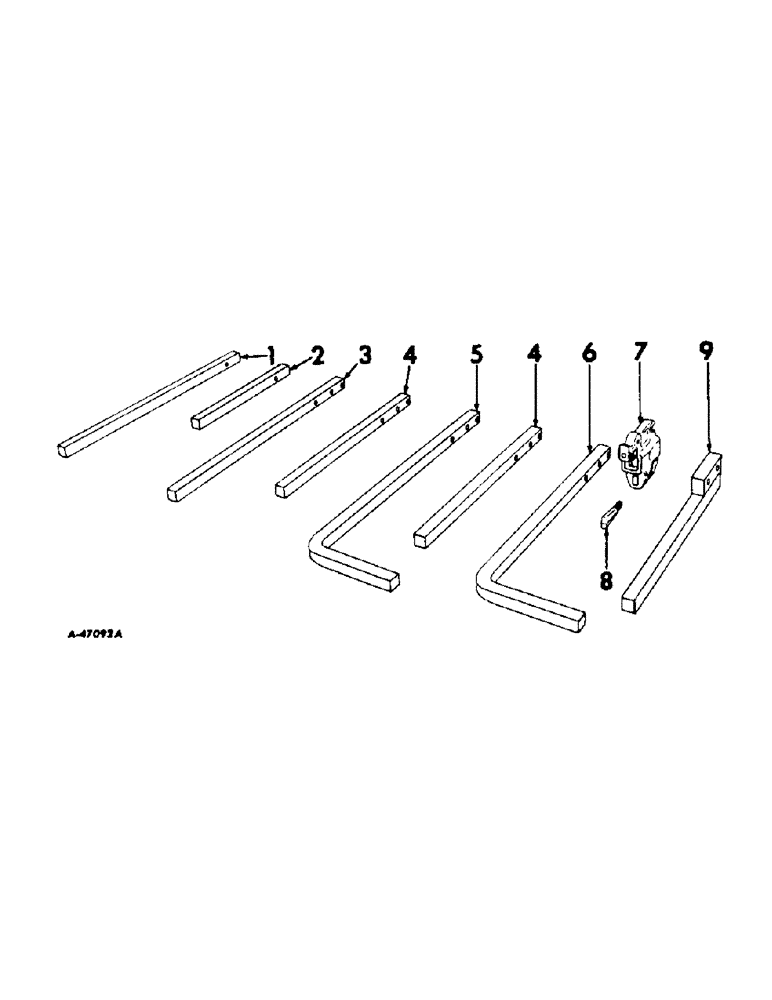

Запчасти Case IH 465A (W-11) - SQUARE TOOL BAR AND ATTACHING CLAMP

1

522563R1

TOOL BAR, left 1st

1шт.

2

522564R3

TOOL BAR, right 1st

1шт.

3

522565R1

TOOL BAR, 2nd

1шт.

4

522566R1

TOOL BAR, nos. 3rd and 5th

1шт.

5

523380R1

TOOL BAR, 4th

1шт.

6

523062R1

TOOL BAR, 6th

1шт.

7

522558R1

CLAMP, tool bar attaching

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 in. C-Z mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9

461708R11

TOOL BAR

1шт.
