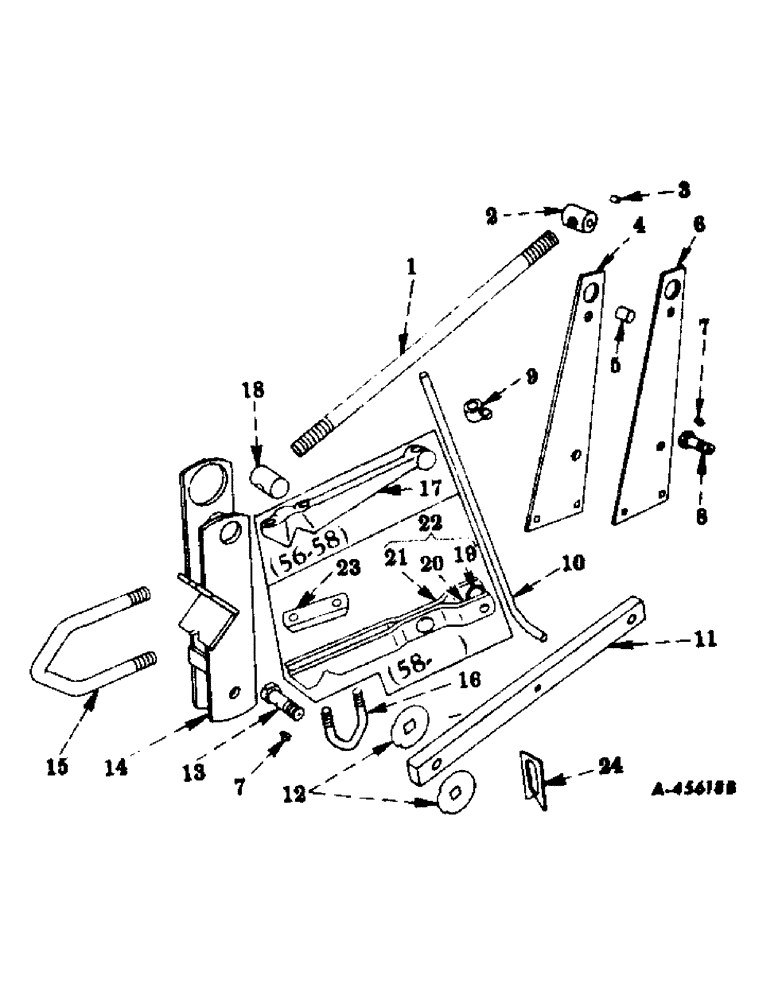

Запчасти Case IH 465A (W-07) - THIRD GANG PARALLEL LINKAGE

1

522506R2

TURNBUCKLE

ROD, upper parallel

1шт.

2

522510R1

BAR

SWIVEL, upper parallel link rear, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

3

522591R1

PLUG

CUSHION, upper parallel link locking bushing fibre

1шт.

4

522520R1

PLATE, tool bar outer attaching, tapped

1шт.

5

522537R1

SPACER

tool bar attaching plate

1шт.

6

522521R1

PLATE, tool bar outer attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, straight 1/4 in. lubrication, Lower parallel link pivot bolt

1шт.

8

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

10

522503R1

ROD, lift

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

523061R1

WASHER

21/32 x 1-3/8 in. x 11 ga case hardened

1шт.

11

522523R1

LINK, lower parallel outer

1шт.

12

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

BRACKET, left and right head, also rockshaft support, discontinued for service

1шт.

15

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

16

522508R2

U-BOLT, lift arm, for 1-1/4 in. sq rockshaft

1шт.

16

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm, for 1-3/8 in. sq rockshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

ARM, long lift (56), discontinued for service

58шт.

18

522509R1

BAR

SWIVEL, upper parallel link front, LH thd

1шт.

19

468022R1

TRUNNION

lift arm

1шт.

20

ARM, left long lift (58), order 525666R91

1шт.

21

ARM, right long lift (58), order 525666R91

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 in. rd-hd

1шт.

22

525666R91

ARM ASSEMBY, long lift

1шт.

23

CLIP, lift arm, discontinued for service

1шт.

24

525670R2

BAR

LOCK, frame

58шт.
