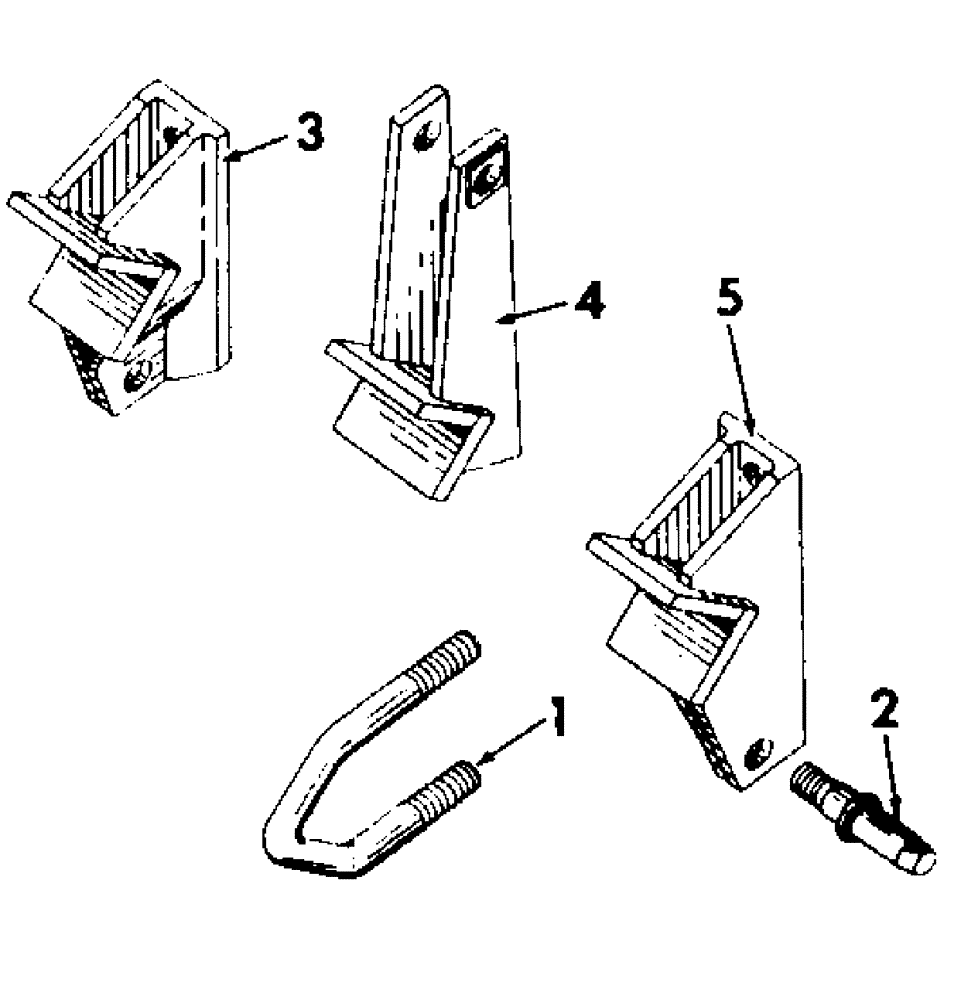

Запчасти Case IH 463 (V-02[B]) - THREE POINT HITCH CATEGORY II, 1958 TO 1961

1

462402R1

BOLT

U-BOLT

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

PO12898

WASHER

29/32 x 1-1/2 in. x 11 ga

2шт.

2

472790R2

STUD

lower, also order attaching parts

2шт.

218407

NUT

1-1/8 in. UNF

2шт.

3

462403R11

BRACKET ASSEMBLY, lower attaching LH

1шт.

4

462399R91

MAST ASSEMBLY

1шт.

280954

NUT,3/4"-10, G5

2шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

3/4 x 10 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

462404R11

BRACKET ASSEMBLY, lower attaching RH

1шт.
