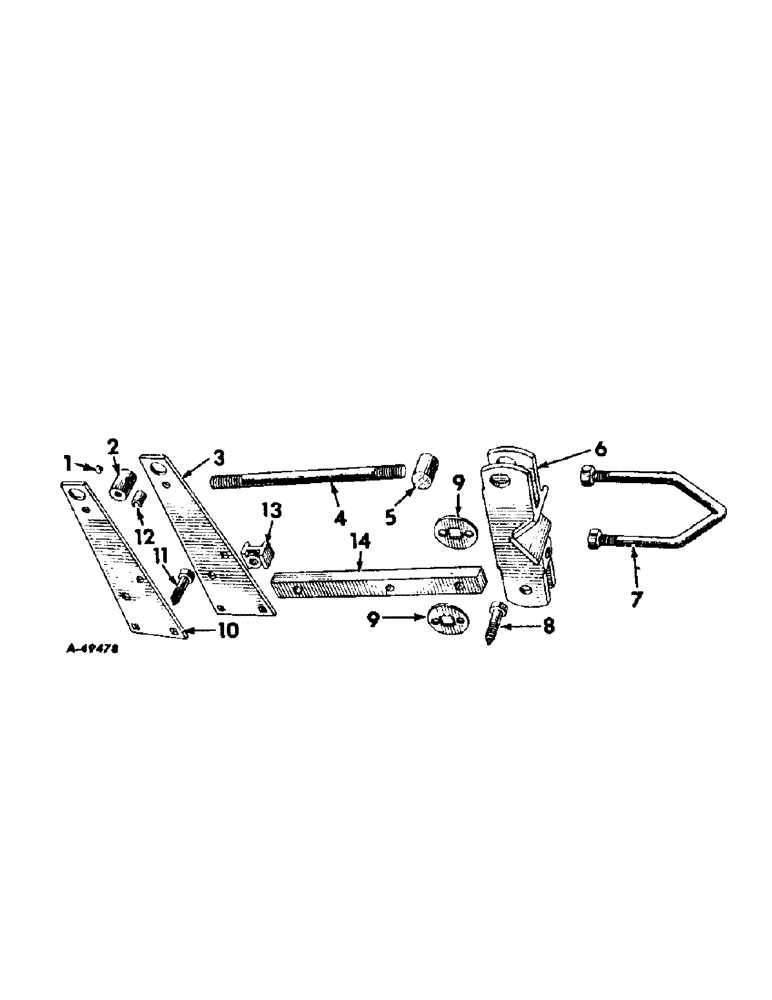

Запчасти Case IH 463 (V-11) - PARALLEL LINKAGE

1

522591R1

PLUG

locking bolt

1шт.

2

522510R1

BAR

SWIVEL, upper parallel link, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

3

524050R1

PLATE, tool bar attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

523448R1

ROD

upper parallel

1шт.

5

522509R1

BAR

SWIVEL, upper parallel link, LH thd

1шт.

6

BRACKET, head, for 3-1/4 in. sq tool bar, discontinued for service

1шт.

6

BRACKET, head, for 2-1/2 in. sq tool bar, discontinued for service

1шт.

7

524047R1

BOLT

U-BOLT, gang attaching, for 3-1/4 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

7

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, gang attaching, for 2-1/2 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

7

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, gang attaching, for 2-1/2 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

8

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

3/4 x 2-3/4 in. mach lower parallel pivot front, 1-1/8 in. thd dld for fitting

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

10

524049R1

PLATE, tool bar attaching, tapped

1шт.

11

522544R2

BOLT

3/4 x 2-1/2 in. mach lower in. thd dld for fitting

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

522537R1

SPACER

tool bar attaching plate

1шт.

13

524048R1

BLOCK, gang stop

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

624133R1

PIN, 5/8 x 1-15/16 in. dld-std-hd 5/8" x 1 15/16"

1шт.

14

523456R1

LINK, lower parallel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrocation, In lower parallel link pivot bolt

1шт.
