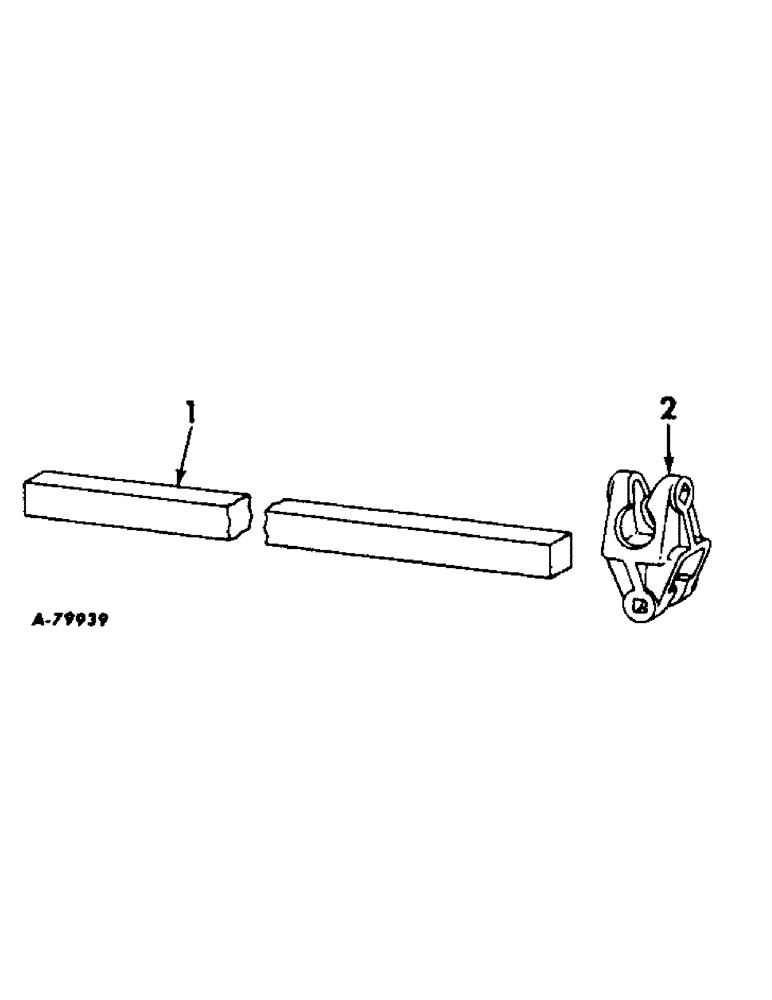

Запчасти Case IH 463 (V-07[C]) - BAR TIE AND CLAMP

1

477209R1

BAR, long tie, 1-3/8 in. sq x 46 in. long

1шт.

1

477210R1

BAR, short tie, 1-3/8 in. sq x 36 in. long

3шт.

1

477211R1

BAR, front tie, 1-1/4 in. sq x 28 in. long

4шт.

2

523216R1

CLAMP, pipe beam

8шт.

598821R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

BOLT, 5/8 x 2-3/4 crg type 5

8шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.
