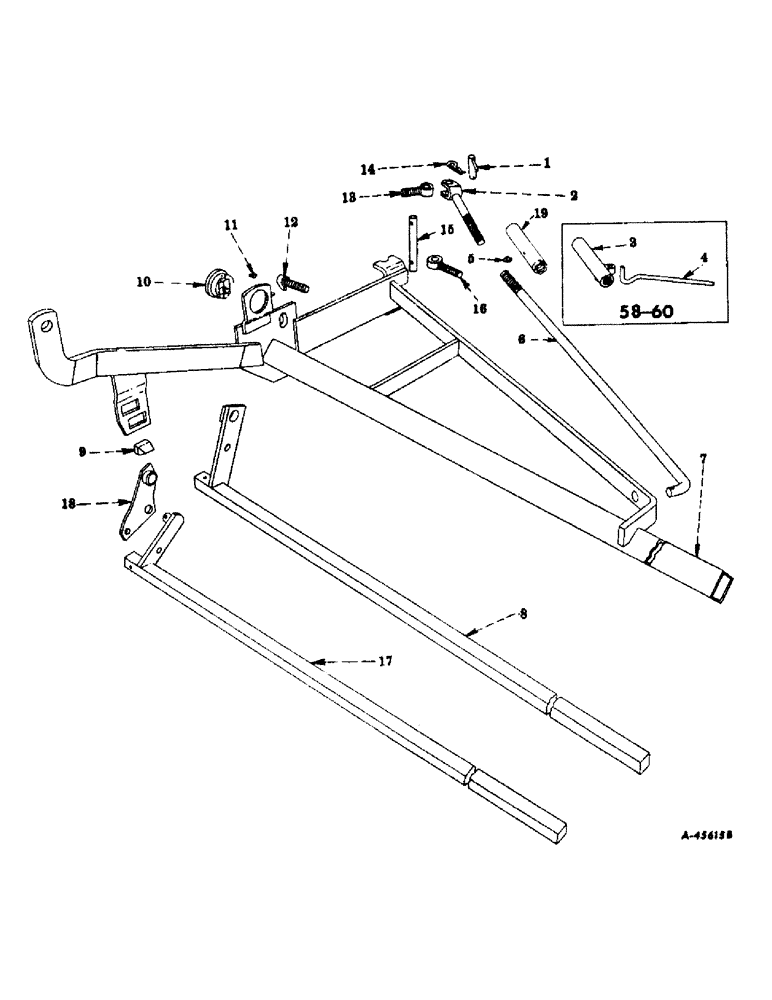

Запчасти Case IH 461 (U-02) - MAIN FRAME AND ROCKSHAFT

1

519311R11

PIN, upper truss rod

1шт.

2

522555R91

ROD, upper truss inner

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

518858R1

TURNBUCKLE, truss rod (58)

60шт.

4

518887R1

HANDLE, truss rod turnbuckle (58)

60шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4UNF straight lubrication

1шт.

6

464411R1

ROD, lower truss

60шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

522500R2

ROD, upper truss (58)

60шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

522551R91

FRAME, main left

1шт.

7

522552R91

FRAME, main right

1шт.

8

522547R91

ROCKSHAFT, lifting left, 1956

1шт.

8

522548R91

ROCKSHAFT, lifting right, 1956

1шт.

9

518876R1

BLOCK

STUD, frame guide

1шт.

17421R1

BOLT (SPREADER)

BOLT, 7/16 x 7/8 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5028

WASHER

15/32 x 1 in. x 11 ga

1шт.

10

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner

1шт.

103425

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

Q3493

WASHER, 2-9/32 x 3 in. x 14 ga

1шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

12

515097R2

BOLT,3/4" - 10 x 3 5/16"

frame hook

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

13

518953R1

BOLT,Eye, 7/8" - 9 x 2 7/8"

EYEBOLT, truss rod

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

14

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

15

518267R2

PIN, frame hinge

1шт.

16

518952R11

BOLT

EYEBOLT, frame hinge

1шт.

220081

NUT

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

17

523535R91

ROCKSHAFT, lifting left, 1957 and since

1шт.

17

523536R91

ROCKSHAFT, lifting right, 1958 and since

1шт.

18

523543R11

BRACKET, left cylinder attaching, 1957 and 1958

1шт.

17475R1

BOLT, 5/8 x 1-1/2 in. mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

464412R1

TURNBUCKLE, truss rod, 1960 and since

1шт.
