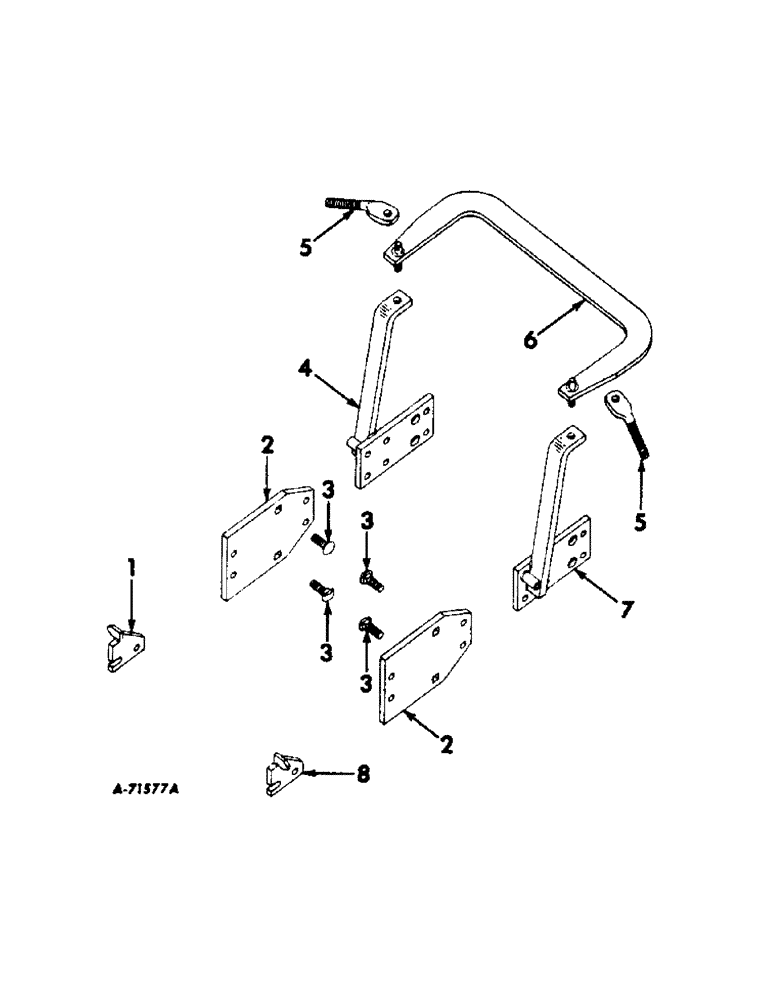

Запчасти Case IH 461 (U-27[A]) - ADAPTING PARTS, TO ADAPT THE NO. 461 CULTIVATOR WITH SELECTIVE LIFT FOR USE WITH F-504 TRACTORS

1

466838R91

GUIDE, frame left

1шт.

2

466836R2

PLATE, adapter center

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

589068R1

WASHER

.656 x 1.250 x .090

4шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

3

466837R1

U-BOLT, frame plate, special

1шт.

280954

NUT,3/4"-10, G5

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

4

468070R91

BRACE, adapter LH

1шт.

5

468184R1

ROD, truss upper

1шт.

6

466353R11

TIE, brace

1шт.

280954

NUT,3/4"-10, G5

2шт.

517843R1

COTTER PIN

PIN, 3/16 in. quick-attachable cotter

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

468071R91

BRACE, adapter RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

1шт.

NLS

NO LONGER SERVICED

5/8 x 2-1/2 pln type 5

4шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 pln type 5

1шт.

8

466839R91

GUIDE, frame right

1шт.

598817R1

BOLT, 5/8 x 1-1/4 crg type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

525694R1

JIG, frame welding

1шт.

525871R11

RAIL, frame

1шт.
