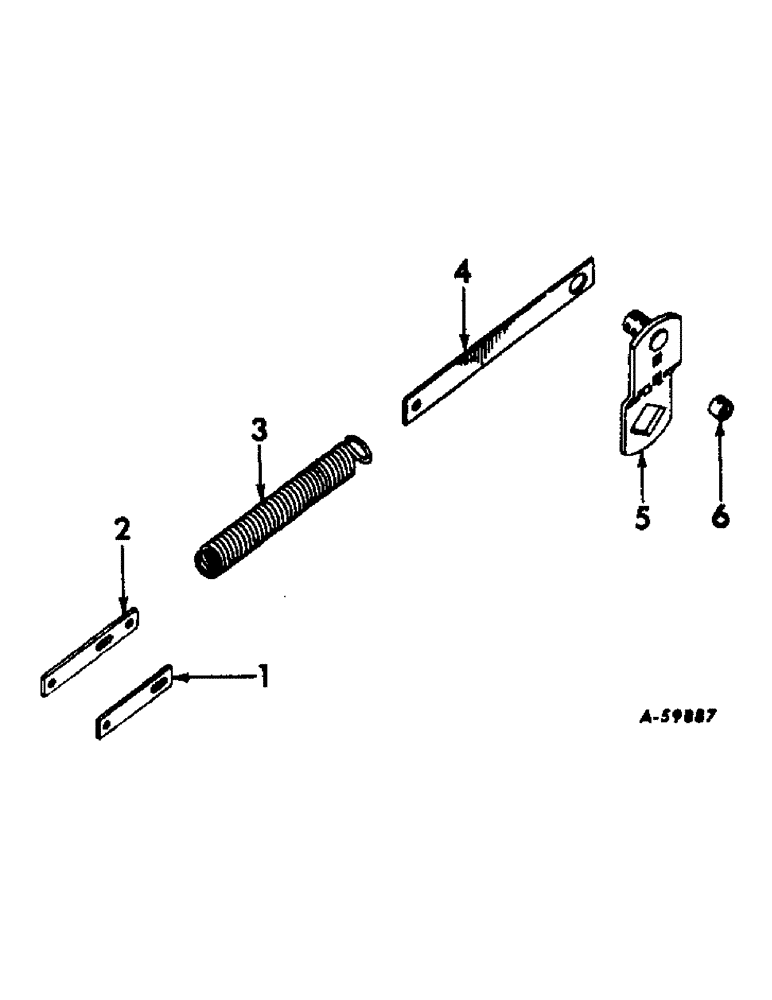

Запчасти Case IH 461 (U-22) - ONE WAY CYLINDER RETURN SPRING

1

462877R1

CLIP, spring

1шт.

2

462875R1

CLIP, spring bar

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

PO27

SPRING

cylinder return

1шт.

4

524139R1

LINK, spring

1шт.

5

462872R11

ARM ASSEMBLY, spring left

1шт.

5

462873R11

ARM ASSEMBLY, spring right

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

453231R1

WASHER

1-3/4 x 3/8 in. x 11 ga

1шт.

6

587009R1

SPACER, spring link stud, order 611629R1

1шт.

6

611629R1

SPACER

spring link stud

1шт.
