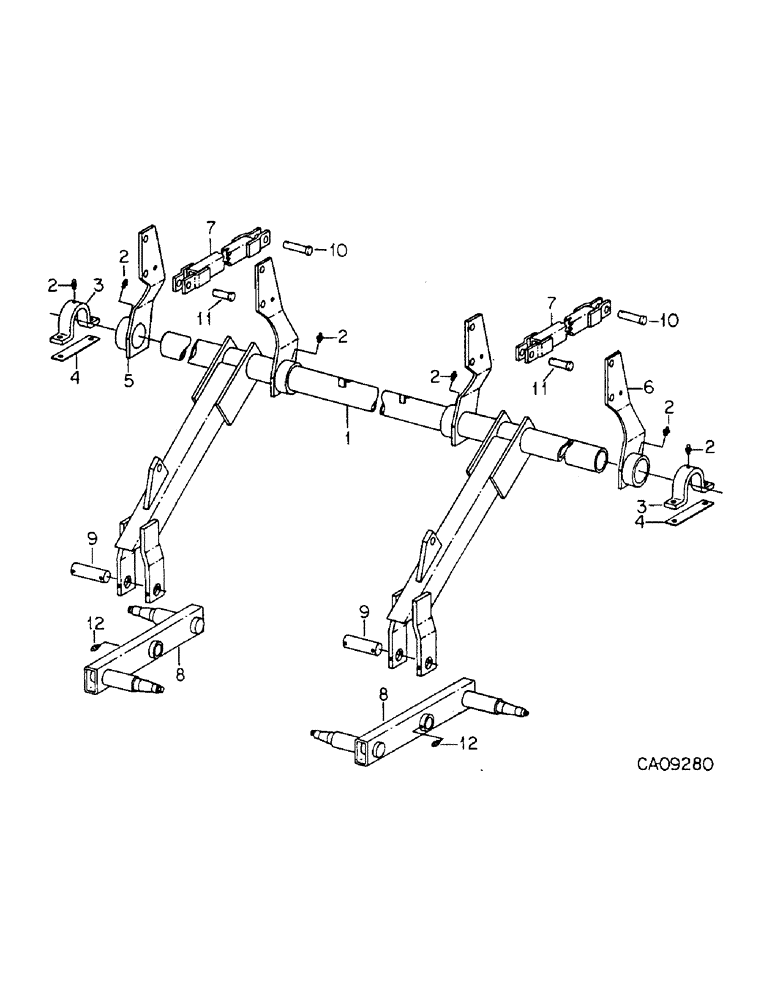

Запчасти Case IH 4600 (A-07) - 4600 VIBRA SHANK, WING TYPE,MAIN FRAME ROCKSHAFT WITH AXLES AND DEPTH OCNTROL,

1

1284040C1

ROCKSHAFT

ASSY, main frame

1шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

3

810463C1

STRAP

CLAMP, rockshaft

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

813767C1

BAR

rockshaft wear

4шт.

5

854637C1

SUPPORT

ASSY, cylinder RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

8546396C1

SUPPORT ASSY, cylinder LH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

854555C1

ROD

ASSY, main frame cyl truss

2шт.

8

1284065C91

TUBE ASSY.

AXLE ASSY, main frame

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

9

1279363C1

PIN

pivot

2шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znp hex. lock

4шт.

10

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

28541R1

PIN, 1 x 2.188 x 1.822 type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

2шт.
