Запчасти Case IH 4600 (A-05) - 4600 VIBRA SHANK, WING TYPE, MAIN FRAME ROCKSHAFT WITH AXLES AND DEPTH CONTROL,

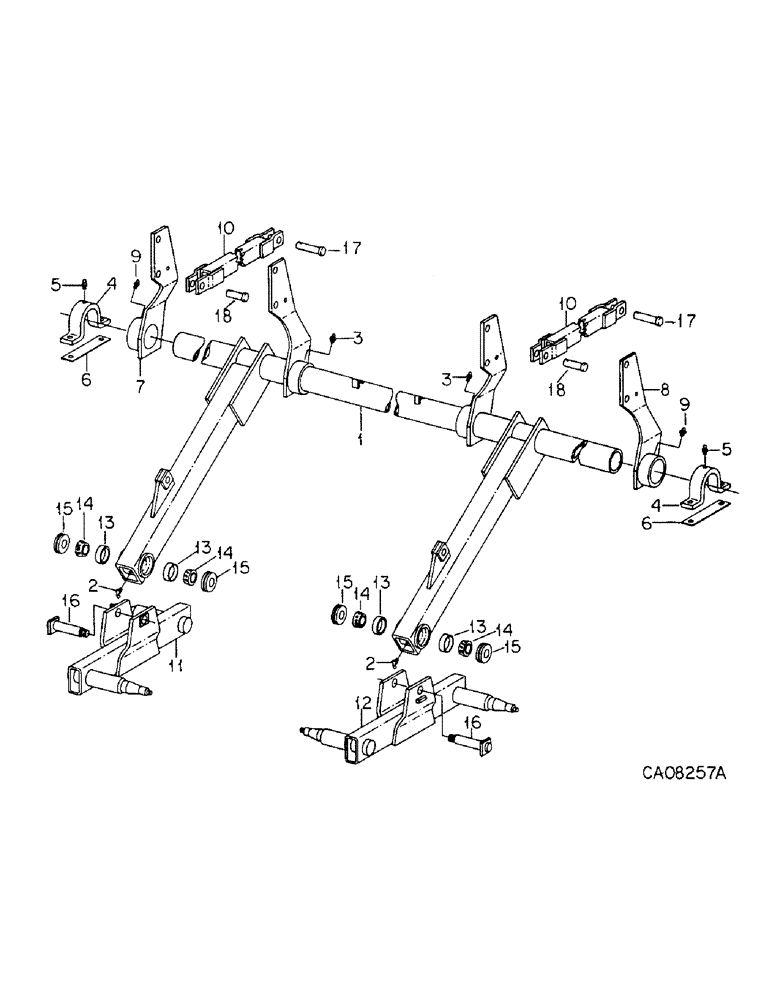

Схема запчастей Case IH 4600 - (A-05) - 4600 VIBRA SHANK, WING TYPE, MAIN FRAME ROCKSHAFT WITH AXLES AND DEPTH CONTROL,

Артикул

Название

Примечание

Количество

1

854551C1

ROCKSHAFT

ASSY, main frame, replaces by 1284040C1, for service also furnish

1шт.

1284040C1

ROCKSHAFT

1шт.

1284065C91

TUBE ASSY.

AXLE

2шт.

1279363C1

PIN

2шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znp hex. lock

2шт.

2

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

2шт.

4

810463C1

STRAP

CLAMP, rockshaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

464623R1

WASHER

.656 x 1.500 x .105

8шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

6

813767C1

BAR

rockshaft wear

4шт.

7

854637C1

SUPPORT

ASSY, cylinder RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

854636C1

SUPPORT

ASSY, cylinder LH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

2шт.

10

854555C1

ROD

ASSY, main frame cyl truss

2шт.

11

AXLE ASSY, main frame RH, order package 1284361C91

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

12

AXLE ASSY, main frame LH, order package 1284361C91

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

13

651817R1

BEARING CUP

BEARING, axle pivot cup

4шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, axle pivot cone

4шт.

15

813159C2

SEAL

ASSY, axle pivot

4шт.

16

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

17

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

18

28541R1

PIN, 1 x 2.188 x 1.822 type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

1284361C91

PACKAGE

axle, replaces axles 811540C91 & 811541C91, consists of

1шт.

1284065C91

TUBE ASSY.

AXLE ASSY

1шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

1284022C1

LARGE PLATE

PLATE

2шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znp hex. lock

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub instructions, installing (NSS)

2шт.

19

1284027C3

SPINDLE

not illustrated

1шт.

Made to order part

1шт.

20

123096A2

WHEEL BEARING KIT

not illustrated

1шт.

This kit is used for IH and Case IH Chisel plows models: 5500, 5600, 5700; Vibra Shank Cultivator models: 4500 & 4600; Vira Tiller model: 4700; Moldboard Plow model: 7500; Disk Harrow models: 3900, 770, 596, late model 496 & machines with 6-bolt heavy-duty hubs

1шт.

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

651817R1

BEARING CUP

CUP

1шт.

663558R1

BEARING CUP

1шт.

594702R91

SEAL

1шт.

594703R1

SLEEVE

SEAL

1шт.
