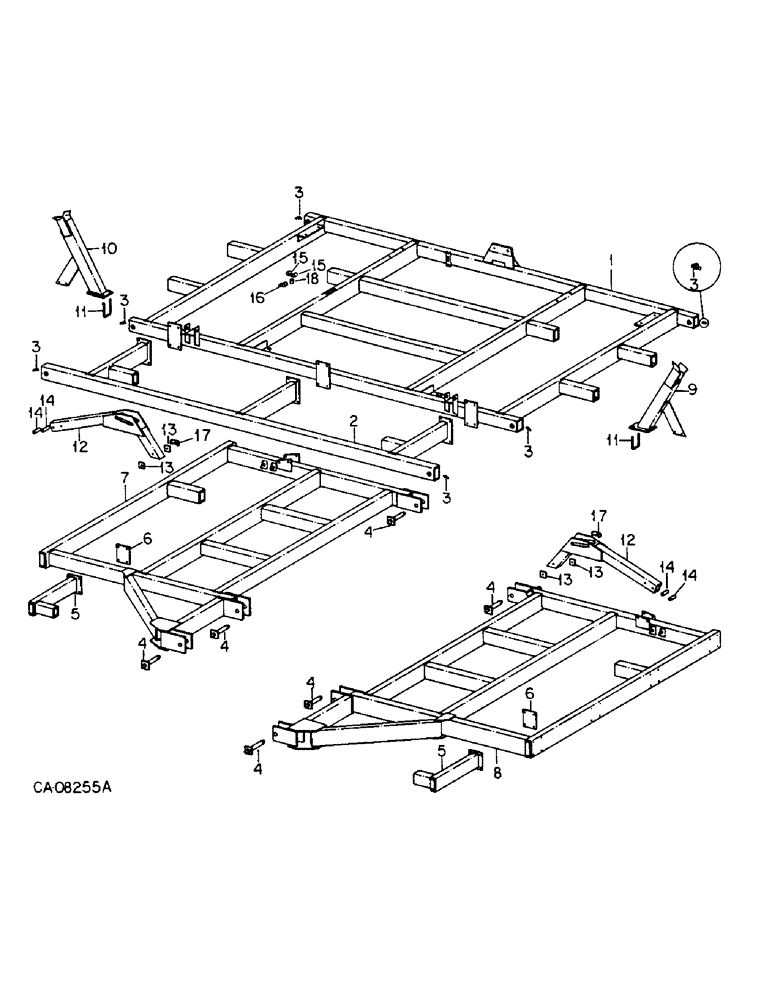

Запчасти Case IH 4600 (A-02) - 4600 VIBRA SHANK, WING TYPE, MAIN AND WING FRAMES, SUPPORTS AND EXTENSIONS

1

854657C92

FRAME

w/product graphic, main

1шт.

59051C2

PRODUCT GRAPHIC

caution

1шт.

2

854658C92

FRAME

w/product graphics, front

1шт.

59051C2

PRODUCT GRAPHIC

S, caution

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general warning

1шт.

854655C2

PRODUCT GRAPHIC, caution

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

8шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

3

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

6шт.

4

854587C1

PIN

ASSY, hinge

6шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

5

854625C1

EXTENSION

ASSY, front frame

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

854626C1

BAR

extension mounting

2шт.

7

854591C1

FRAME

ASSY, RH wing 1.75m, for sizes 22.9 ft, 24.0 ft, 25.1 ft, and 26.2 ft

1шт.

7

854529C1

FRAME

ASSY, RH wing 2.43m, for sizes 27.3 ft, 28.4 ft, 29.6 ft, and 30.7 ft

1шт.

8

854590C1

FRAME

ASSY, LH wing 1.75m, for sizes 22.9 ft, 24.0 ft, 25.1 ft, and 26.2 ft

1шт.

8

854528C1

FRAME

ASSY, LH wing 2.43m, for sizes 27.3 ft, 28.4 ft, 29.6 ft, and 30.7 ft

1шт.

9

854542C2

TUBE ASSY.

SUPPORT ASSY, wing lift LH front

1шт.

10

854543C2

TUBE ASSY.

SUPPORT ASSY, wing lift RH front

1шт.

11

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 tyep 5

4шт.

12

854522C2

SUPPORT

ASSY, wing lift rear

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

2шт.

280954

NUT,3/4"-10, G5

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

854645C1

BAR

inner spacer

4шт.

14

31097R1

SPACER

3/4 x 2.413 tube

4шт.

15

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

.438 dia znp coated med closed

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

129083C1

CLAMP, .625 dia znp coated med closed

3шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

1256951C1

CLAMP

hose

2шт.

18

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

5/8 x 1.000 tube

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
