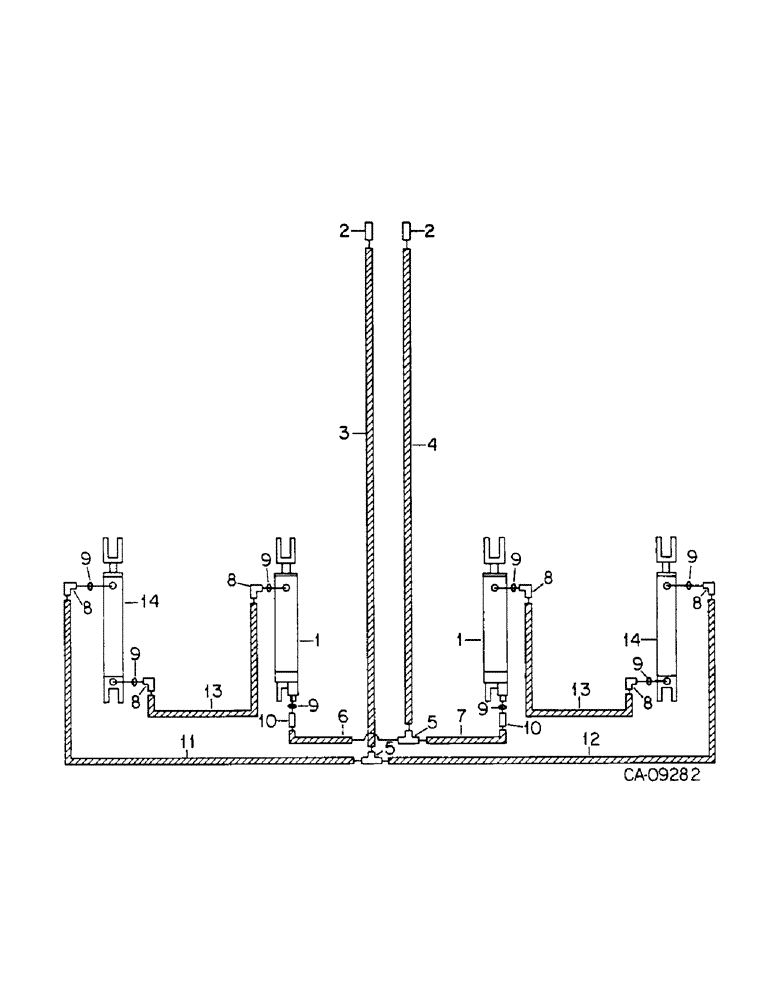

Запчасти Case IH 4600 (A-18) - 4600 VIBRA SHANK, WING TYPE, HYDRAULIC SYSTEM, DEPTH CONTROL WITH WELDED CYLINDER

1

812368C91

CYLINDER

3.5 x 8 master, refer to cyl-1 for components

2шт.

813108C1

SEAL KIT

o-ring & seal

1шт.

1277593C91

ROD

SCREW ASSY, L

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

2шт.

3

1284263C1

HYDRAULIC HOSE

HOSE, front hyd pressure 3/8 x 285 in. long, replaces hose 810491C1 (70 in. long) hose 810650C1 (214 in. long) & fitting 9402787, for service also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

4

1284263C1

HYDRAULIC HOSE

HOSE, front hyd return 3/8 x 285 in. long, replaces hose 810491C1 (70 in. long) hose 810595C2 (186 in. long) & fitting 9402787, for service also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

5

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 C-Z hyd flared three way, replaces 9402982

2шт.

6

8105702C

HOSE, master cyl LH pressure 3/8 x 90 in. long, replaces 810598C1 (87 in. long)

1шт.

7

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE, master cyl RH pressure 3/8 x 55 in. long, replaces 810599C1 (52 in. long)

1шт.

8

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D, replaces 9410977

6шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

8шт.

10

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, replaces 9410203

2шт.

11

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE, slave cyl LH return 3/8 x 185 in. long, for 22.9 ft. 24.0 ft. and 26.2 ft sizes, replaces 810595C2 (186 in. long)

1шт.

11

129764C2

HYDRAULIC HOSE

HOSE, slave cyl LH return 3/8 x 215 in. long, for 27.3 ft. 28.4 ft. 29.6 ft and 30.7 sizes, replaces 810650C1 (214 in. long)

1шт.

12

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Slave cyl RH return, For 22.9 ft. 24.0 ft. 25.1 ft. and 26.2 ft. sizes, Replaces 810649C1 (148 in. long) 9.52 mm ID x 3810.00 mm

1шт.

12

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE, slave cyl RH return 3/8 x 175 in. long, for 27.3 ft. 28.4 ft. 29.6 ft. and 30.7 ft sizes, replaces 1279037C1 (175 in. long)

1шт.

13

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Slave cyl pressure, For 22.9 ft. 24.0 ft and 26.2 ft sizes, Replaces 810649C1 (148 in. long) (For service also furnish 9.52 mm ID x 3810.00 mm

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

13

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE, slave cyl pressure 3/8 x 175 in. long, for 27.3 ft. 28.4 ft 29.6 ft and 30.7 ft. sizes, replaces 1279037C1 (175 in. long) for service also furnish

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

14

812367C91

CYLINDER

3/25 x 8 slave, refer to cyl-1 for components, replaces 810311C91

1шт.

87423770R

REMAN-HYD CYLINDER

4600 INTERNATIONAL HARVESTER VIBRA SHANK CULTIVATOR, Reman for New P/N 812367C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

812723C1

SEAL KIT

o-ring & seal

1шт.

1277593C91

ROD

SCREW ASSY, L

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

813579C1

CABLE TIE

STRAP, hose tie, hv

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose tie

1шт.
