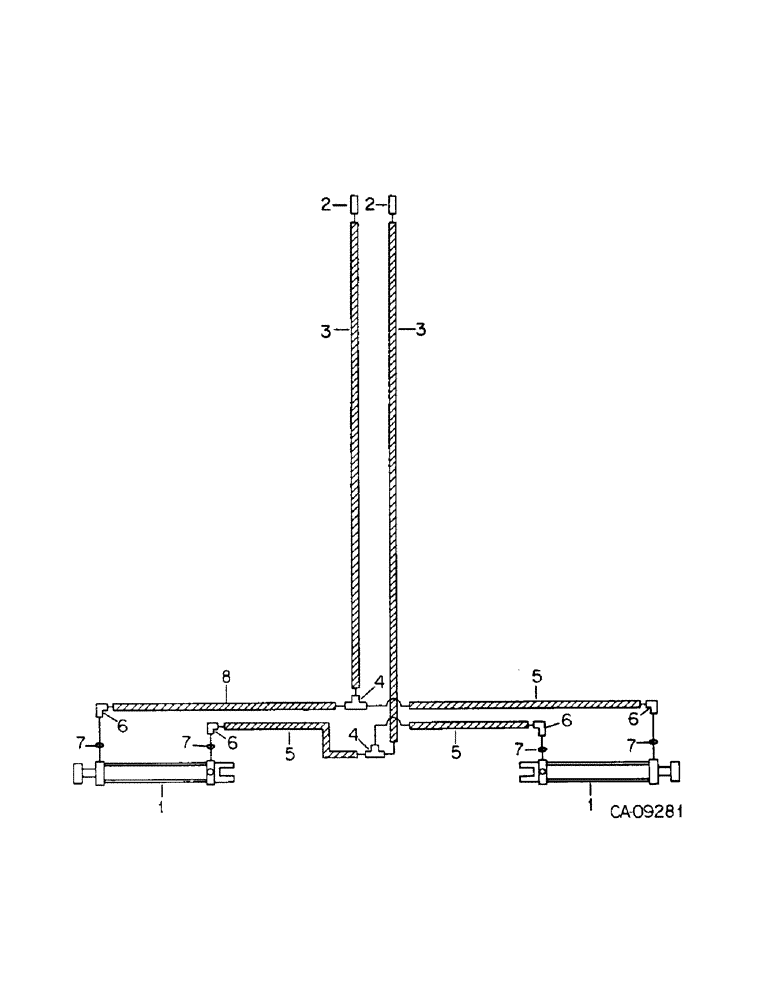

Запчасти Case IH 4600 (A-16) - 4600 VIBRA SHANK, WING TYPE, WING LIFT HYDRAULICS

1

1285753C91

CYLINDER

3.5 x 34 wing lift, refer to cyl-1 for components, replaces 224791C92

2шт.

79980C1

SEAL KIT

o-ring & seal (or)

1шт.

1

810665C91

CYLINDER

3.5 x 34 wing lift, refer to cyl-1 for components

2шт.

813435C91

SEAL KIT

o-ring & seal

1шт.

854527C1

PIN

cylinder rod end

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

810751C1

PIN

cylinder base headed

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, replaces 935433R1

2шт.

3

1284263C1

HYDRAULIC HOSE

HOSE, front tractor hyd 3/8 x 285 in. long, replaces hose, 810205C1 (70 in. long), hose, 810939C1 (210 in. long) & fitting 9402786, for service also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

4шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

4шт.

4

9402981

SHAFT

3/8 C-Z hyd flared three way

2шт.

5

810604C1

HYDRAULIC HOSE

HOSE, wing lift hyd pressure & return RH - 1/4 x 29 in. long

3шт.

6

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D, replaces elbow 9410976, o-ring 364839, washer 810767R1 & adapter 610952R1

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

8

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

- Wing lift hyd return LH, Replaces hose 810938C1 6.35 mm ID x 1525.00 mm

1шт.

813579C1

CABLE TIE

STRAP, hose tie, HV

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose tie

1шт.
