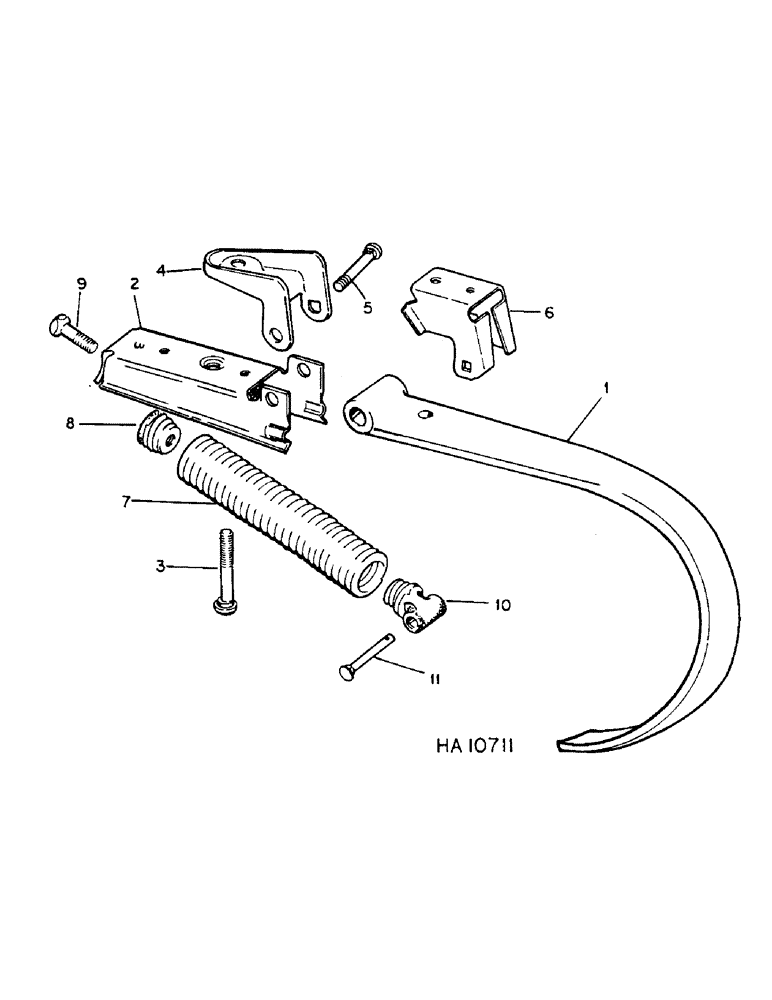

Запчасти Case IH 4600 (A-15) - 4600 VIBRA SHANK, WING TYPE, VIBRA SHANK

1

811992C1

SHANK

vibra

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

812913C1

BRACKET

shank

1шт.

3

811340C3

BOLT,1/2" - 13 x 5 1/2"

shank

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 CAD P/T lock type 5

1шт.

4

812914C1

BRACKET

CLAMP, shank top

1шт.

5

811991C1

BOLT

shank pivot

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD P/T lock type 5

1шт.

495-31069

WASHER,5/8" x 1.469" x .134"

.688 x 1.469 x .108

1шт.

6

591542R1

BRACKET

CLAMP, shank lower

1шт.

7

591546R1

SPRING

shank return

1шт.

8

591547R1

PLUG

spring front

1шт.

9

597671R1

BOLT,1/2" - 13 x 2.06", Gr 20

front plug

1шт.

10

591544R1

PLUG

spring rear

1шт.

11

591545R1

PIN,13.08mm OD x 61.98mm L

rear plug

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
