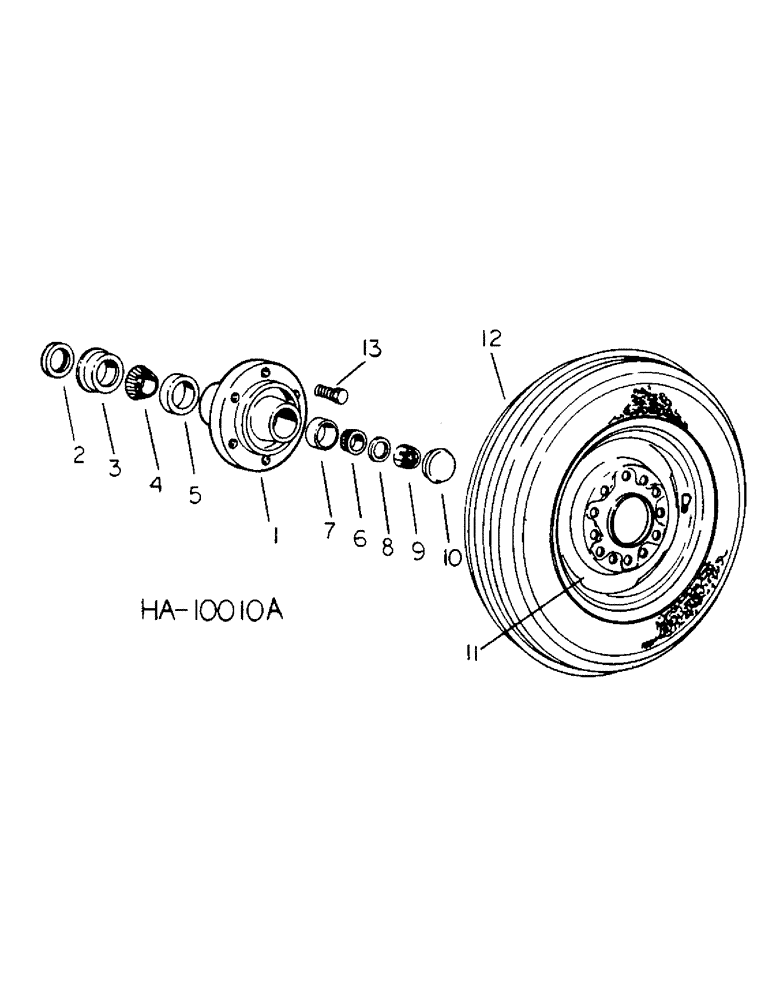

Запчасти Case IH 4600 (A-13) - 4600 VIBRA SHANK,WING TYPE,WING FRAME WHEEL AND HUB,DUAL WHEEL AXLES FOR 27.3,28.4,29.6 &30.7 SIZES

1

810087C1

HUB

wing wheel

4шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

4шт.

3

472222R1

SLEEVE

oil seal wear

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, hub inner cone

4шт.

5

651817R1

BEARING CUP

BEARING, hub inner cup

4шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, hub outer cone

4шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

7

651814R1

BEARING CUP

BEARING, hub outer cup

4шт.

8

467750R1

WASHER

.781 x 1.500 x .105

4шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

10

602959R1

PLUG

CAP, wheel hub

4шт.

11

622192R91

WHEEL

15 x 5 KB

4шт.

12

TIRE, 7.60-15 4 ply I-1 tubeless

4шт.

810769C1

VALVE

tubeless tire steel

4шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

24шт.
