Запчасти Case IH 4600 (A-13[1]) - 4600 VIBRA SHANK, WING TYPE, SAFETY CHAIN EQUIPMENT

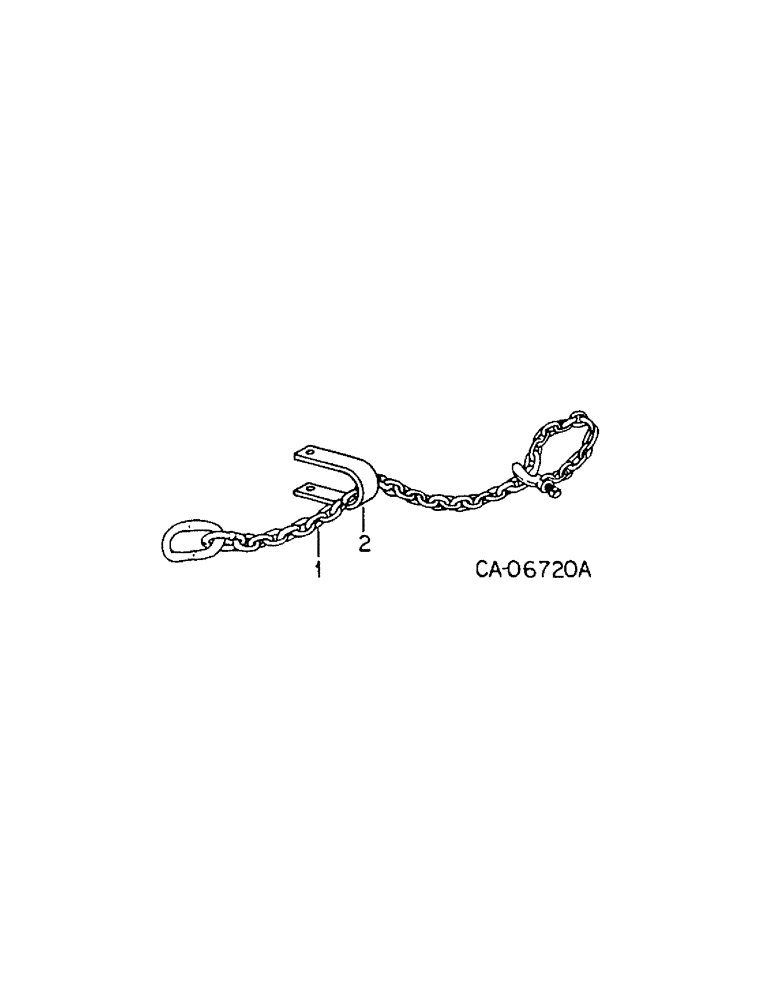

Схема запчастей Case IH 4600 - (A-13[1]) - 4600 VIBRA SHANK, WING TYPE, SAFETY CHAIN EQUIPMENT

Артикул

Название

Примечание

Количество

1

100682C2

CHAIN (AG)

CHAIN, 10,000 lbs safety

1шт.

2

148558C1

CLEVIS

safety chain

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln P/T lock type 5

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

18444R1

NUT,3/4"-10, GB

3/4 pln P/T lock type 5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

61913C92

PACKAGE

chain hardware, consists of ref no. 2 and attaching hardware

1шт.

Выбрано товаров: 8
