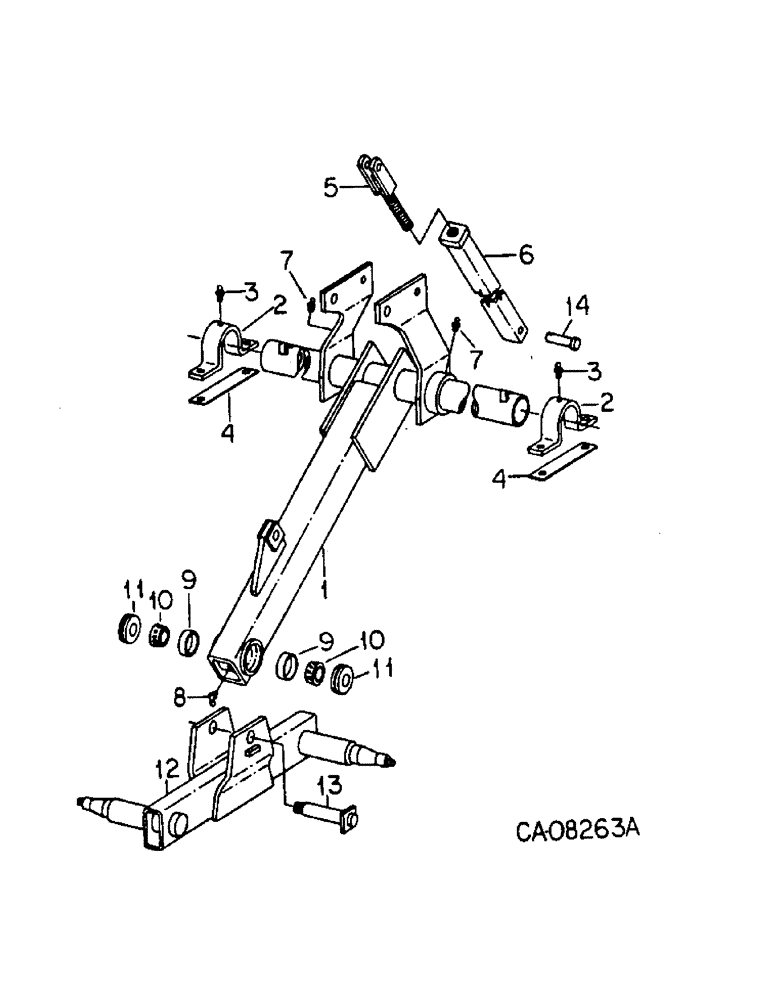

Запчасти Case IH 4600 (A-11) - 4600 VIBRA SHANK, WING TYPE, WING FRAME ROCKSHAFT WITH DEPTH CONTROL DUAL AXLE

1

854558C1

ROCKSHAFT

ASSY, dual axle type, replaces by 1284038C1, for service also furnish

2шт.

1284038C1

ROCKSHAFT

1шт.

1284065C91

TUBE ASSY.

AXLE

1шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znp hex. lock

4шт.

2

811038C1

CLAMP

rockshaft

4шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

4

810829C1

BAR

rockshaft wear

4шт.

5

854603C1

ROD

ASSY, adj truss

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

854613C1

TUBE

ASSY, wing frame cyl truss rod

2шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

8

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

2шт.

9

651817R1

BEARING CUP

BEARING, axle pivot cup

4шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, axle pivot cone

4шт.

11

813159C2

SEAL

ASSY, axle pivot

4шт.

12

AXLE ASSY, wing frame LH

1шт.

12

AXLE ASSY, wing frame RH, order package 1284361C91

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

13

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

14

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

1284361C91

PACKAGE

axle, replaces axles 811540C91 & 811541C91, consists of

1шт.

1284065C91

TUBE ASSY.

AXLE ASSY

1шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

1284022C1

LARGE PLATE

PLATE

2шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znp hex. lock

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub instructions, installing (NSS)

2шт.
