Запчасти Case IH 4600 (A-10) - 4600 VIBRA SHANK, WING TYPE, WING FRAME WHEEL AND HUB SINGLE AXLE FOR 22.9, 24.0, 25.1 & 26.2 SIZES

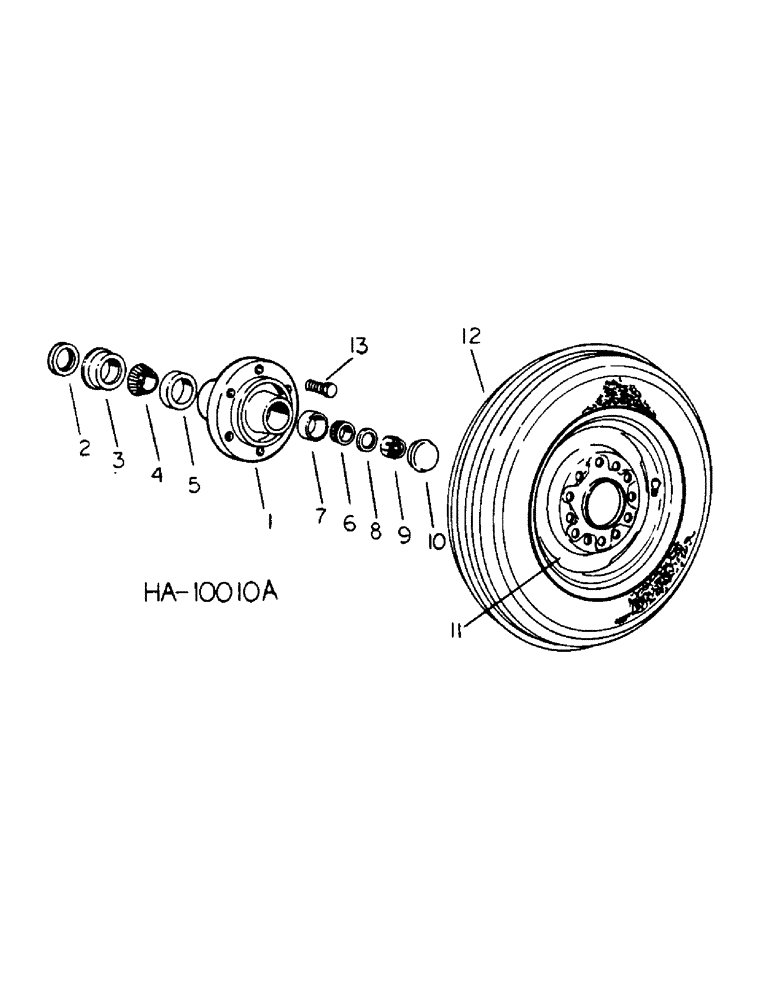

Схема запчастей Case IH 4600 - (A-10) - 4600 VIBRA SHANK, WING TYPE, WING FRAME WHEEL AND HUB SINGLE AXLE FOR 22.9, 24.0, 25.1 & 26.2 SIZES

Артикул

Название

Примечание

Количество

1

810087C1

HUB

wing wheel

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, hub inner cone

2шт.

5

651817R1

BEARING CUP

BEARING, hub inner cup

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, hub outer cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

BEARING, hub outer cup

2шт.

8

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

481344R91

WHEEL

14 x 6 KB

2шт.

12

TIRE, 9.5L-14 6 ply tubeless

2шт.

810768C1

VALVE

tubeless tire std

2шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

2шт.

Выбрано товаров: 16
