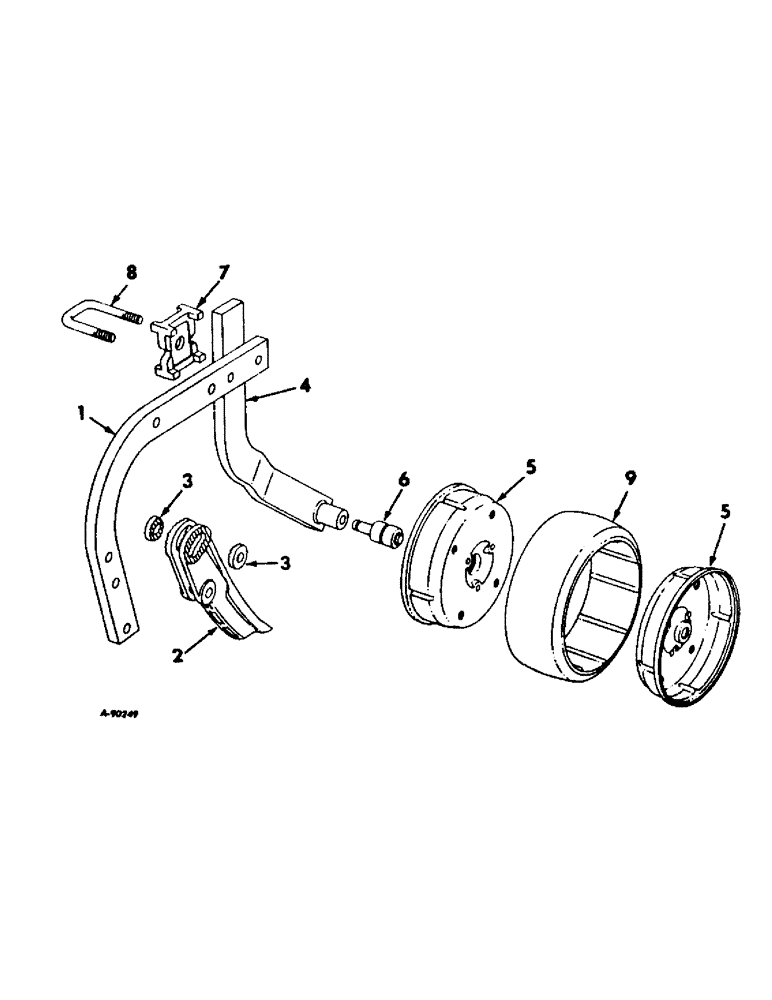

Запчасти Case IH 46 (E-4) - BEAM AND SHANK WITH GAUGE WHEELS

1

487237R1

BEAM

short

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

522473R1

WASHER

49/64 x 1-3/4 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

487239R1

LEVER

SHANK

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

3

523011R1

WASHER

serrated

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

4

487240R2

ARM

ASSY, gauge wheel

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/4 C-Z hex-soc-hd f-pt set

1шт.

5

526768R1

WHEEL

RIM, gauge wheel

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120376

NUT,5/16"-18, G5

7шт.

7

487242R3

BLOCK

clamp

1шт.

8

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT, arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

516492R1

TYRE/TIRE

TIRE, 4X 12 semi pneumatic

1шт.
