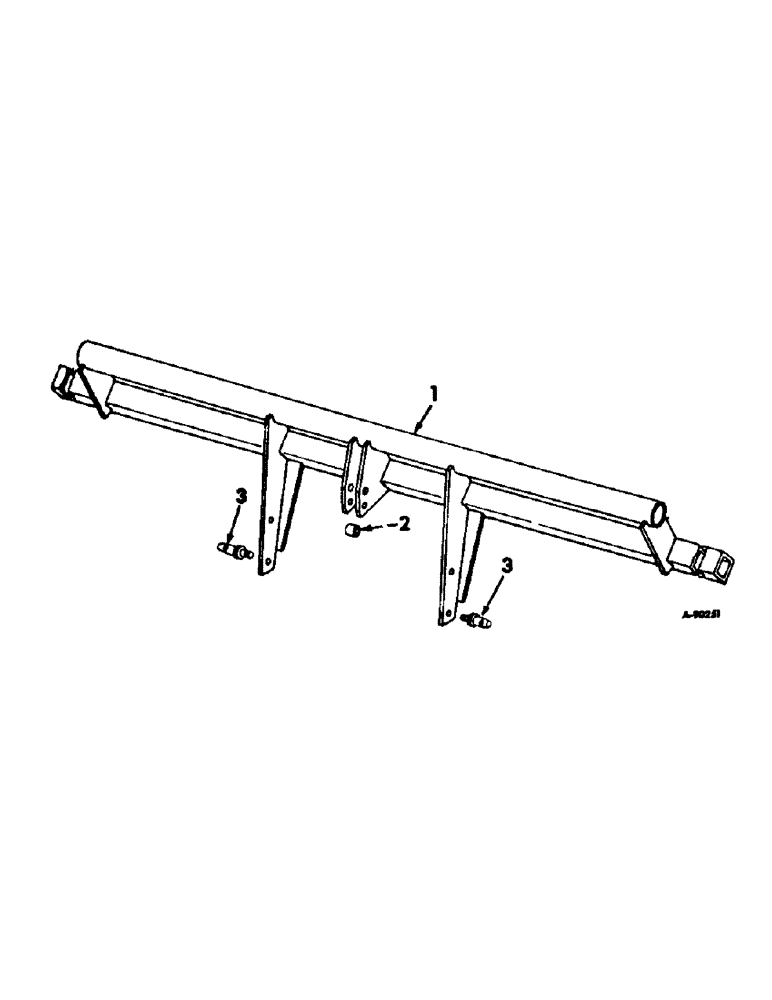

Запчасти Case IH 46 (E-2) - MAIN FRAME AND HITCH STUD, FOR FOUR-ROW CULTIVATOR

1

487211R2

FRAME ASSY, high clearance main

1шт.

2

462425R1

SPACER

mast

1шт.

21449R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

472790R2

STUD

hitch lower, for category 11 three-point hitch

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.
