(E-7[A]) - TWO-POINT FAST HITCH, FOR FOUR-ROW CULTIVATORS

Запчасти Case IH 46 (E-7[A]) - TWO-POINT FAST HITCH, FOR FOUR-ROW CULTIVATORS

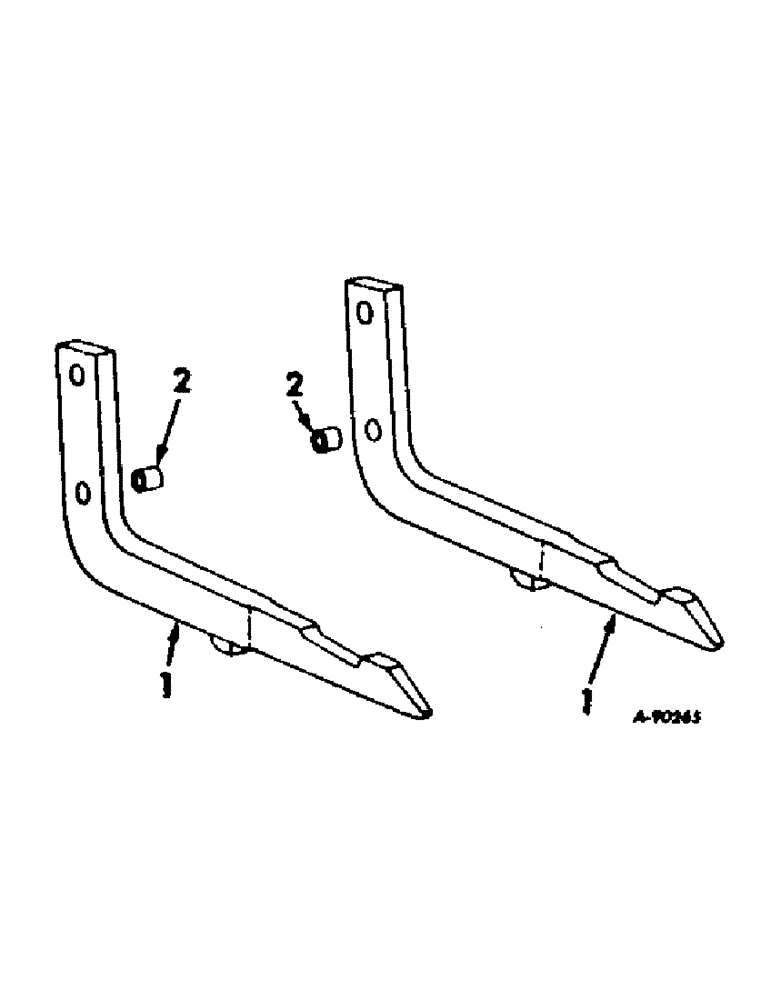

Схема запчастей Case IH 46 - (E-7[A]) - TWO-POINT FAST HITCH, FOR FOUR-ROW CULTIVATORS
2
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

487243R11

BEAM ASSY, coupling

2шт.

271820

SCREW

7/8-9 x 3-1/4 C-Z hex-hd cap

4шт.

2

584964R1

SPACER,1 1/8" Tube x 3/4"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

Выбрано товаров: 6
