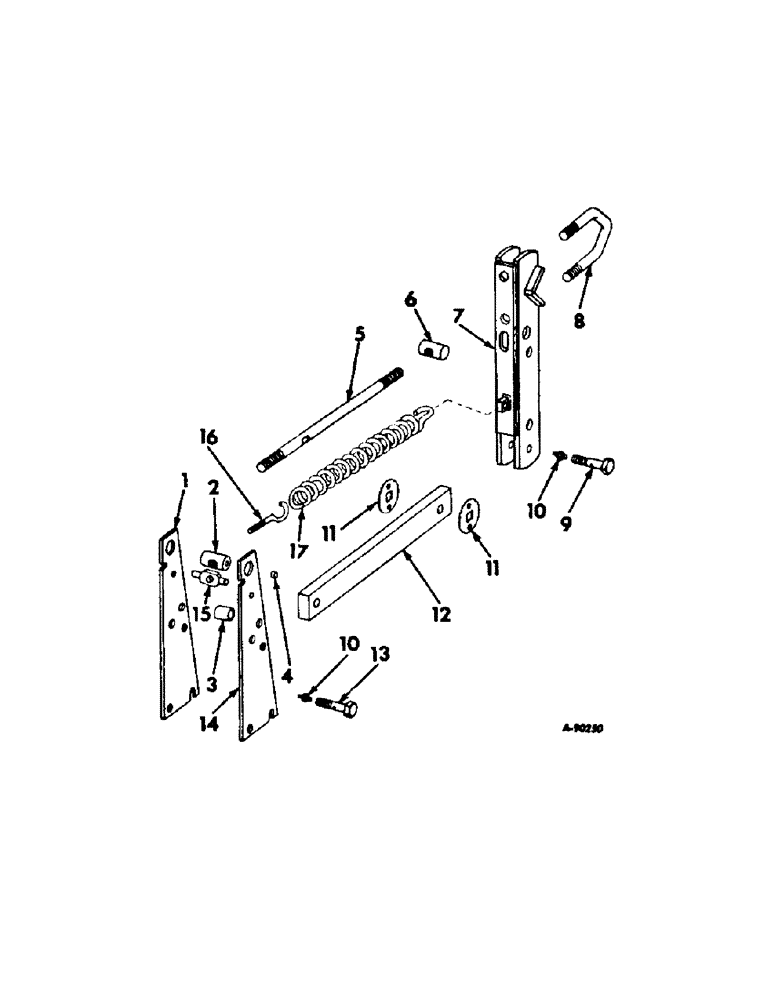

Запчасти Case IH 46 (E-6) - PARALLEL LINKAGE

1

487225R1

PLATE

tool bar tapped support

1шт.

2

483286R1

PIVOT ASSY.

SWIVEL, upper link rear

1шт.

3

483284R1

SPACER

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

522591R1

PLUG

bolt locking

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 std-hd

1шт.

13082R1

PIN, 1/4 x 1-1/8 self-opening cot

1шт.

5

523448R1

ROD

upper link

1шт.

6

483285R1

PIVOT ASSY.

SWIVEL, upper link front

1шт.

7

487228R1

BRACKET ASSY, high clearance

1шт.

8

524046R3

BOLT,U, 7/8" - 9 x 7 3/4"

U-BOLT

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

9

487061R2

BOLT,Hex, 3/4" - 10 x 3"

lower link pivot

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4-10 cd nylon insert

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF straight lub

2шт.

11

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower pivot bearing

2шт.

12

483281R1

BAR, lower parallel link

1шт.

13

487061R2

BOLT,Hex, 3/4" - 10 x 3"

lower link pivot

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4-10 cd nylon insert

1шт.

14

487226R1

PLATE

tool bar not tapped support

1шт.

15

487235R2

PIVOT

trunnion

1шт.

16

542321R1

BOLT,3/8" - 16 x 4"

hook

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

487236R2

SPRING

pressure

1шт.
