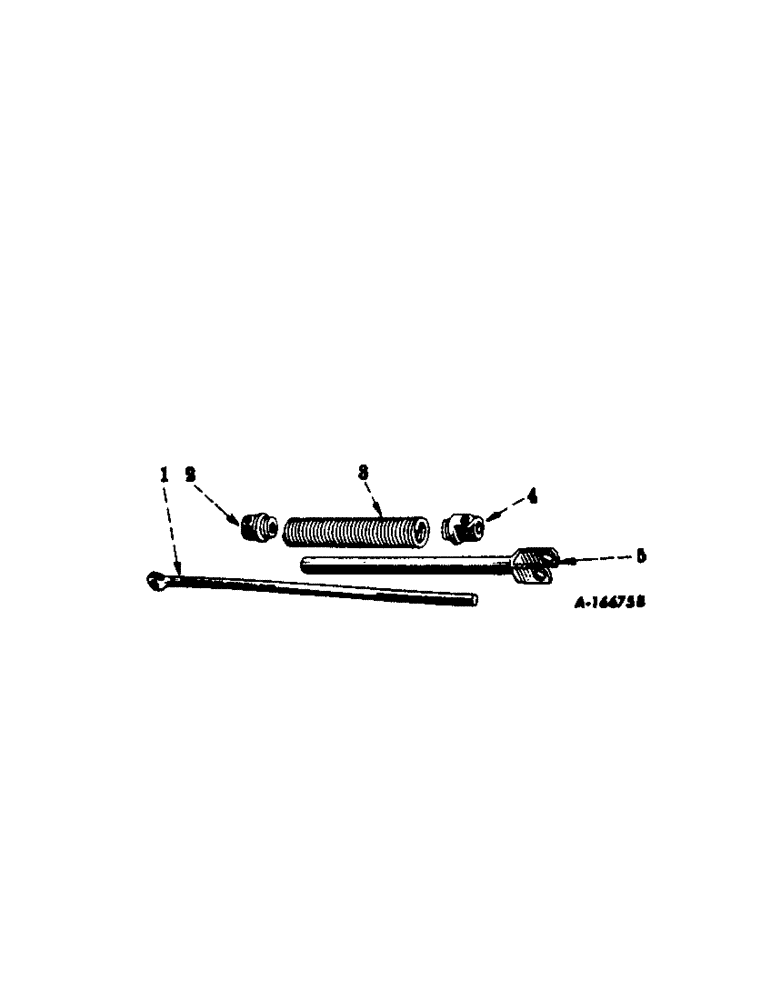

Запчасти Case IH 452 (T-03) - UNIVERSAL MOUNTING FRAME, LIFT LINK AND PIPE

1

PO28371

ROD

LINK, lift lifting, offset

1шт.

1

PO28372

ROD

LINK, right lifting, straight

1шт.

2

PO3185

PLUG

PLUT, lift link spring, order 514609R91

1шт.

2

514609R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

3

PO27501

SPRING

lifting link, 1-7/16 in. OD, long, 46 coils

1шт.

4

PO3184

PLUG

lift link spring, order 512608R91

1шт.

4

514608R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

5

PO28377

YOKE

PIPE, lifting link

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26209B

AXLE PIN

PIN, 5/8 x 1-13/16 in. dld-std-hd

1шт.
