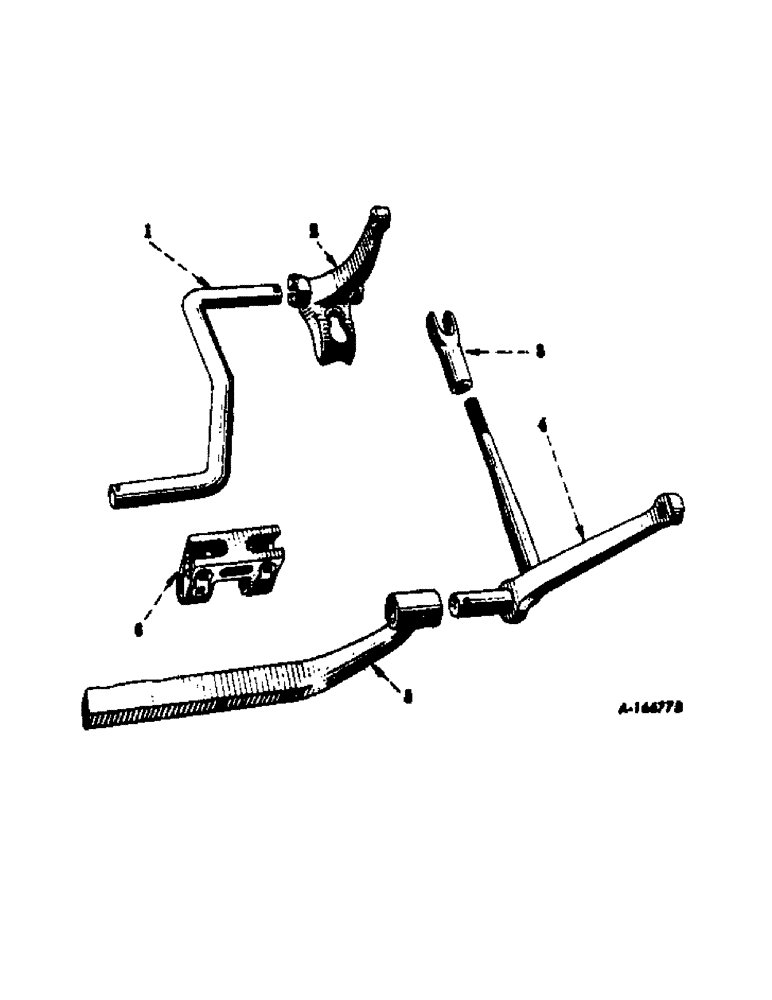

Запчасти Case IH 452 (T-02) - UNIVERSAL MOUNTING FRAME

1

PO27491A

ROD

BEAM, gang left, 1-3/8 in. dia

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

615290R1

WASHER

1-13/32 x 1-15/16 in. x 16 ga

1шт.

2

PO3103B

BEAM

CLAMP, gang beam and tool bar left

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 type 1

2шт.

3

516766R1

YOKE

CLEVIS, upper parallel link adjusting

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

512654R1

PIN

5/8 x 2-3/8 in. pointed headed

1шт.

4

516769R21

LINK ASSY.

LINK ASSEMBLY, upper parallel left

1шт.

516773R1

NUT

1/8 in. jam

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

F18476

WASHER

1-9/32 x 1-3/4 in. x 16 ga

1шт.

5

PO28913

BAR

frame left, 1-1/2 in. sq

1шт.

511961R2

BOLT,Hex, 5/8" - 11 x 1 1/2"

SCREW, 5/8 x 1-1/2 in. special point cap

2шт.

6

PO3101B

ARM

BEARING, gang beam left

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

2шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
