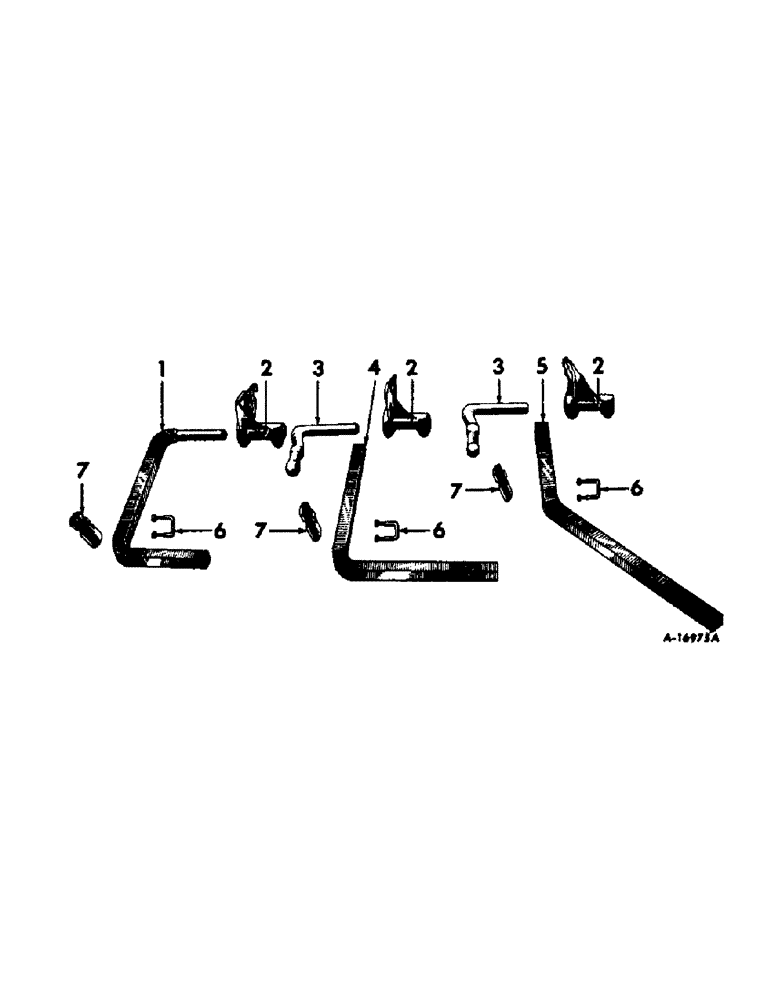

Запчасти Case IH 452 (T-18) - GANG BEAMS, REAR SECTION

1

512423R1

BEAM

gang, for spring trip 2-sweep or spring tooth 2-shovel rear section

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

2

1929BA

CLAMP

BEARING, gang beam head left, not used with fast-hitch

1шт.

2

1930BA

CLAMP

BEARING, gang beam head right, not used with fast-hitch

1шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

BOLT, 7/16 x 2-1/2 crg type 1

1шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 type 1

1шт.

3

29956B

HEAD

gang beam

1шт.

512426R11

BOLT, 1/2 x 3-1/4 in. sq-hd mach, heat-treated

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

512424R1

BEAM, gang, for spring trip 2-sweep rear section

1шт.

5

512425R1

BEAM, gang, for spring trip 2 or 4 sweep rear section

1шт.

6

PO17044A

BOLT

U-BOLT, pressure spring rod bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

27665BA

BRACKET

pressure spring rod

1шт.
