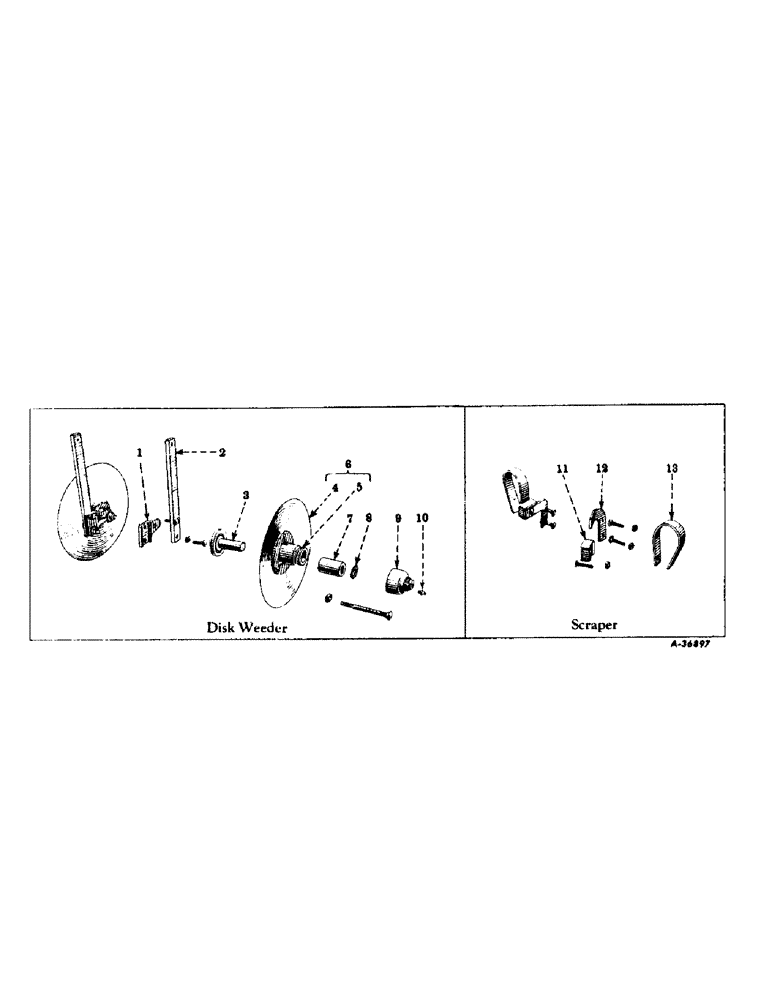

Запчасти Case IH 452 (T-16) - DISK WEEDER AND SCRAPER, WOOD BEARING

1

1812B

BRACKET, adjusting

1шт.

2

28616B

STANDARD, 9/16 x 1-1/2 in.

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

2шт.

3

8918

SPINDLE, hub

1шт.

4

S2200

DISK, 12 in. dia

1шт.

5

7875X

HUB W/WOOD BEARING, disk left

1шт.

5

7876X

HUB W/WOOD BEARINGS DISK RIGHT

1шт.

104098

RIVET,But Hd, 5/16" x 7/8"

5/16 x 7/8 pln but/hd sol

6шт.

6

PO10260

DISK W/HUB, left, 12 in. dia

1шт.

6

PO10259

DISK W/HUB, right, 12 in. dia

1шт.

7

516633R1

BEARING, spindle, wood

1шт.

8

PO11538

WASHER, disk bearing bolt, 1/2 in. sq, hole -1/2 in. OD x 14 ga

1шт.

18705R1

BOLT, 7/16 C 5-1/2 crg type 1

1шт.

615066R1

WASHER

15/32 x 1-1/8 in. x 16 ga

1шт.

9

1725BX

CAP W/FITTING, hub left

1шт.

9

1726BX

CAP W/FITTING, hub right

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

11

PO1161

BLOCK, spacing

1шт.

12

PO13591A

BRACKET, scraper left

1шт.

12

PO13592A

BRACKET, scraper right

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

6шт.

13

S3484

SCRAPER, disk

1шт.
