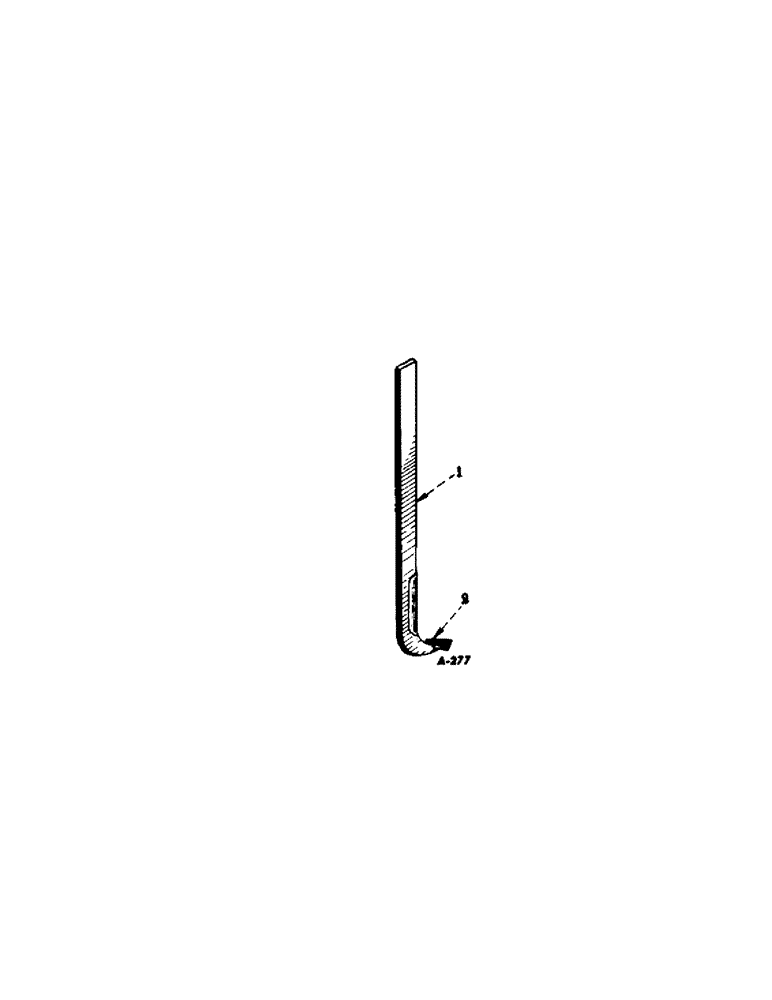

Запчасти Case IH 452 (T-11[B]) - DIAMOND POINTS

1

29962B

ROD

pressure spring

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

2

1855B

PIVOT

SWIVEL, pressure spring rod, not for use with fast-hitch

1шт.

2

1874B

PIVOT

SWIVEL, pressure spring rod, for use with fast-hitch

1шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

3

512277R11

PLATE

SUPPORT, lifting bar left

1шт.

4

460309R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

5

512278R91

TAPPET

BAR, lifting

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

6

PO172

SPRING

pressure rod, .947 in. OD, 12-5/8 in. long, 42 coils

1шт.

7

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.
