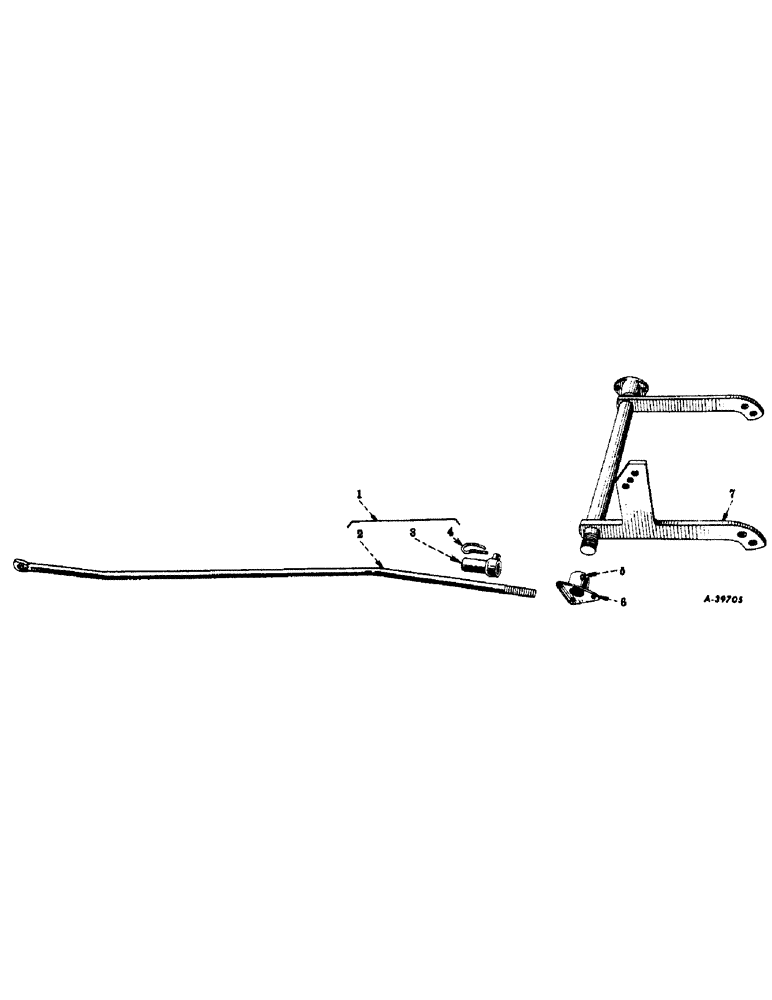

Запчасти Case IH 452 (T-10) - RIGID ROCKSHAFT WITH LIFT LINK

1

515226R91

ROCKSHAFT

LINK ASSEMBLY, lifting, consists of

1шт.

515059R1

ROD

LINK

1шт.

515060R91

END

SWIVEL

1шт.

2

515059R1

ROD

LINK, lifting

1шт.

218443

NUT

3/4 in. jam

1шт.

3

515060R91

END

SWIVEL, lifting link

1шт.

4

PO18499

COTTER PIN

quick-attachable cotter

1шт.

551177R1

WASHER

21/32 x 1-1/4 in. x 16 ga

1шт.

5

109358

FITTING, 5/16 in. drive type straight lubrication

1шт.

6

512447R21

BEARING ASSY

W/FITTING, rockshaft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Q1505

WASHER

.406 x 1.000 x .056 pln

3шт.

7

512453R93

ROCKSHAFT

1шт.

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, lifting link

1шт.
