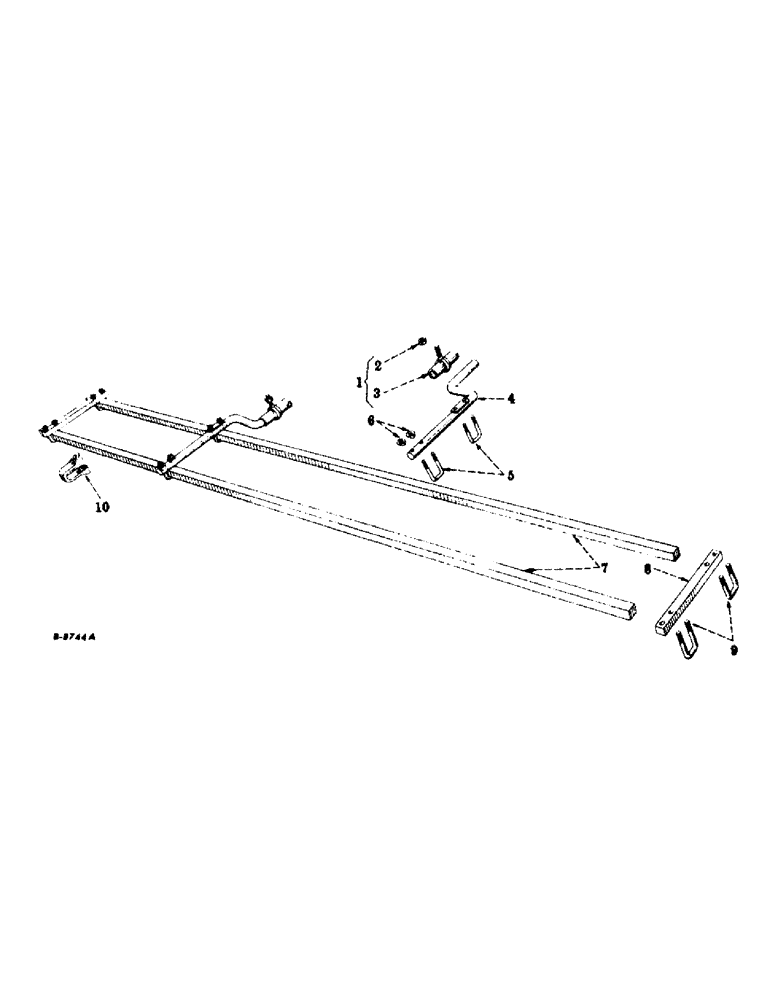

Запчасти Case IH 452 (T-09) - FRONT TOOL BAR, 6-ROW

1

514715R91

SLEEVE ASSEMBLY, attaching

1шт.

516808R1

NUT

7/8 in., heat-treated

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE, attaching, order 514715R91

1шт.

3

516808R1

NUT

7/8 in., heat-treated

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3536

PIN

3/8 x 2-3/8 in. dld-std-hd

1шт.

Q1505

WASHER

13/32 x 1 in. 16 ga

1шт.

4

520265R11

BAR, attaching left

1шт.

4

520266R11

BAR, attaching right

1шт.

5

519531R1

U-BOLT, tool bar attaching

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

512774R1

BLOCK, spacing

1шт.

7

521126R1

TOOL BAR, 1-1/2 in. sq, 129 in. long

1шт.

8

520408R1

BAR, tie

1шт.

9

519535R1

U-BOLT, tool bar attaching

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

519475R21

CLAMP

W/SET SCREW, standard

1шт.

137821

SET SCREW,Sq Hd, 3/4" - 10 x 2"

SCREW, 3/4 x 2 in. dog-pt sq-hd set

1шт.

220081

NUT

3/4 in.

1шт.
