Запчасти Case IH 452 (T-07) - GAUGE WHEELS

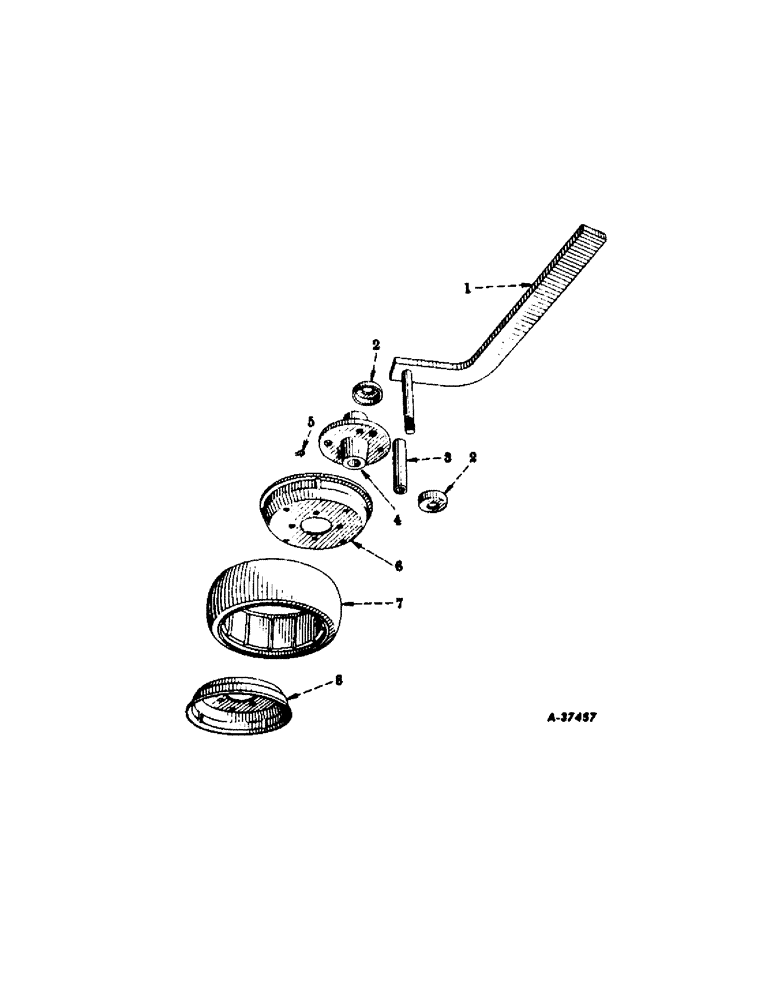

Схема запчастей Case IH 452 - (T-07) - GAUGE WHEELS
8
4
7
6
1
5
2
2
3

Артикул

Название

Примечание

Количество

1

478427R91

STANDARD ASSY, LH

1шт.

1

478428R91

STANDARD ASSY, RH

1шт.

478293R1

LOCK NUT,3/4"-10, GB

NUT, 3/4 in. Maclean Fogg two-way

2шт.

Q3481

WASHER

1-1/32 x 1-1/2 in. x 16 ga

4шт.

2

516569R1

WASHER

COLLAR, sand (55)

56шт.

2

522371R1

WASHER

COLLAR, sand

56шт.

3

519893R1

BUSHING

axle

1шт.

4

519029R21

HUB

W/LUBRICATION FITTING, wheel

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 in. mach

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type lubrication

1шт.

6

516491R2

RIM

wheel, zero-pressure tire

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 in. C-Z pltd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z pltd mach

4шт.

120376

NUT,5/16"-18, G5

8шт.

134238R1

WASHER

11/32 x 1 in. x 16 ga

1шт.

7

516492R1

TYRE/TIRE

TIRE, zero pressure, 4.00 x 12, 1PR

1шт.

Выбрано товаров: 17
