Запчасти Case IH 452 (T-06) - PRESSURE ROD, REAR SECTION

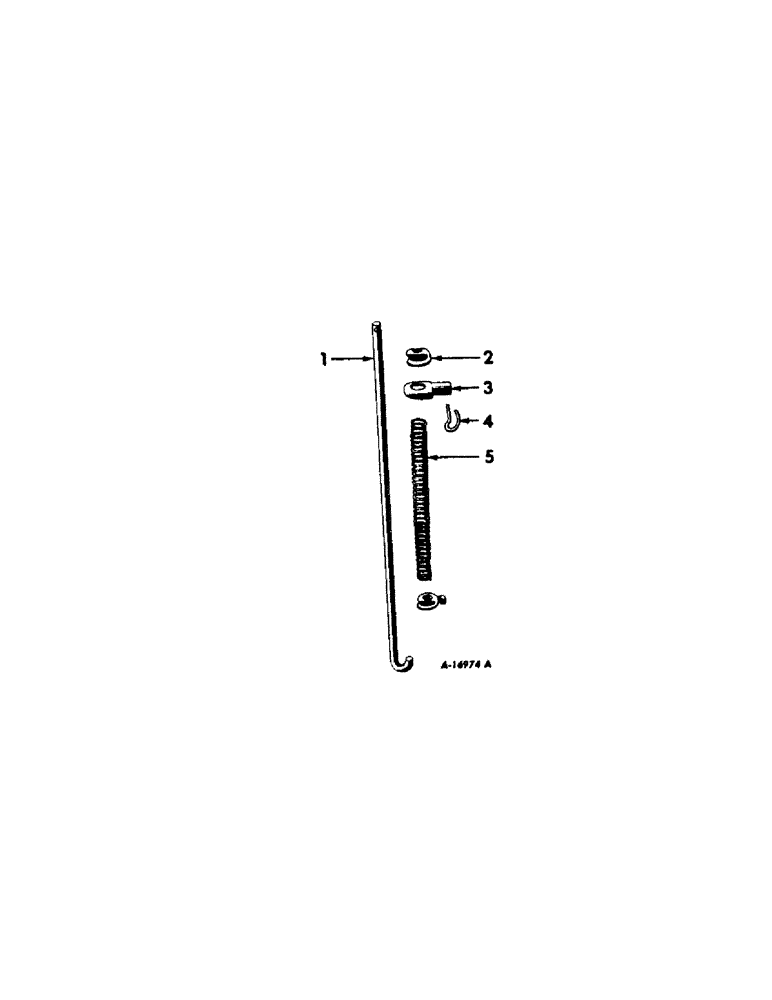

Схема запчастей Case IH 452 - (T-06) - PRESSURE ROD, REAR SECTION
2
1
3
5
4

Артикул

Название

Примечание

Количество

1

29962B

ROD

pressure spring

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure spring rod set

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2 x 5/8 znp c/pt sq/hd set

1шт.

3

512422R3

ROD

SWIVEL, pressure spring rod, not used with fast-hitch

1шт.

4

460309R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

5

PO172

SPRING

pressure rod, .947 in. OD, 12-5/8 in. long, 42 coils

1шт.

Выбрано товаров: 7
