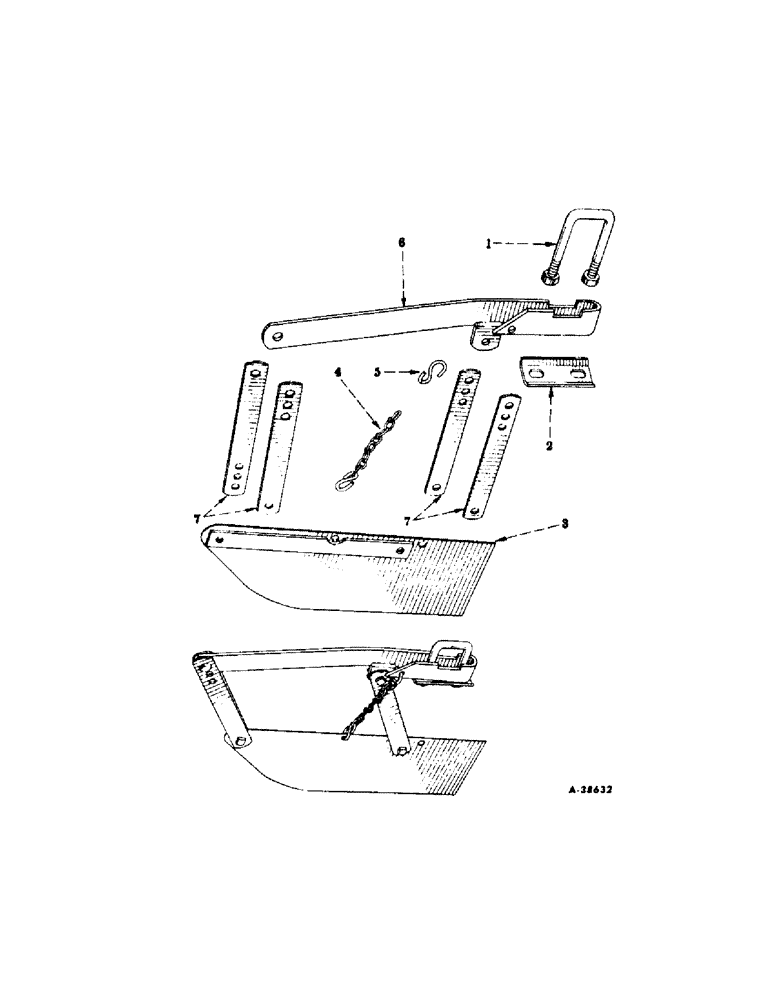

Запчасти Case IH 452 (T-06[A]) - CULTIVATOR SHIELD

1

521459R1

U-BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

510510R2

CLIP, U-bolt

1шт.

3

30449BA

SHIELD W/STIFFENER, left

1шт.

3

30320BA

SHIELD W/STIFFENER, right

1шт.

4

SA3771

CHAIN W/S-HOOK, 4 links, no. 2 Tenso chain, w/no. 6 S-hook

1шт.

5

512749R1

HOOK

S-HOOK, chain, no. 6 S-hook

1шт.

6

521460R11

SUPPORT, shield

1шт.

7

30314B

LINK, pivot

1шт.

17434R1

BOLT, 3/8 x 1 in. dld mach

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 in. slotted

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.
