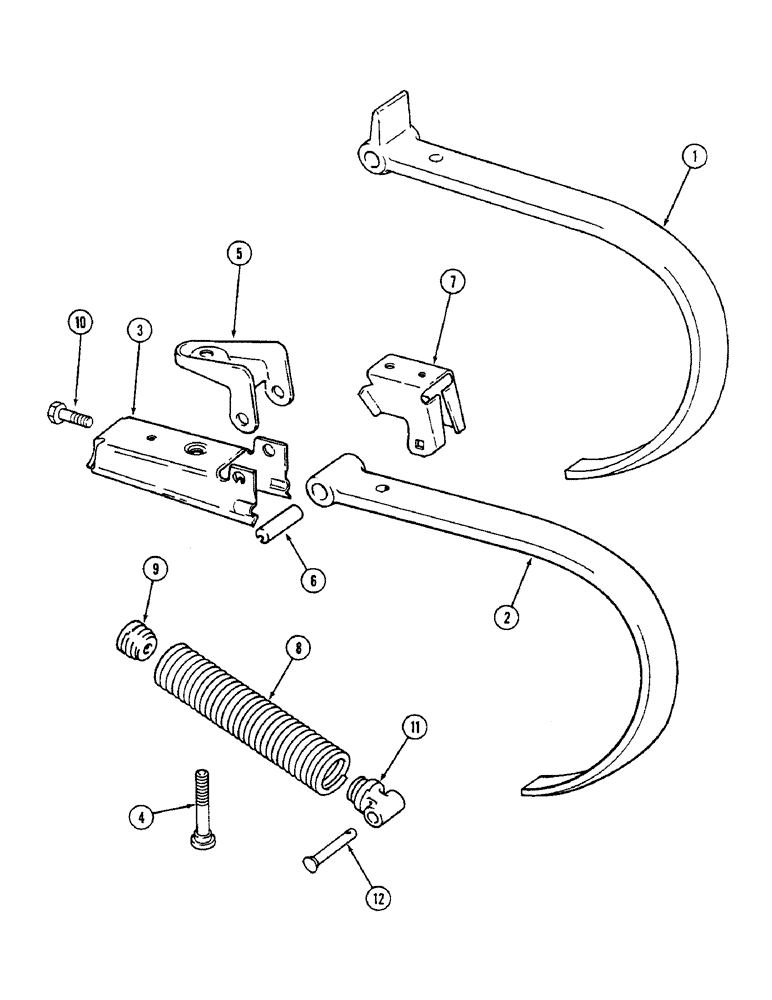

Запчасти Case IH 4500 (9-098) - TOOLING EQUIPMENT, VIBRA SHANK (09) - CHASSIS/ATTACHMENTS

1

SHANK - vibra, with lug (Order 813293C1 shank, see Ref 2)

1шт.

2

813293C1

SHANK

- vibra, without lug

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Shank to clamp) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

3

811357C2

SUPPORT

BRACKET - shank

1шт.

4

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT - shank eccentric

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

5

811353C1

CLAMP

- shank, top

1шт.

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, Grade 8

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

6

811354C2

BUSHING

- shank clamp

1шт.

7

591542R1

BRACKET

CLAMP - shank, lower

1шт.

8

591546R1

SPRING

- shank return

1шт.

9

591547R1

PLUG

- spring, front

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces 597671R1) Hex, 1/2"-13 x 2", G5

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

11

591544R1

PLUG

- spring, rear

1шт.

12

591545R1

PIN,13.08mm OD x 61.98mm L

- rear plug

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.
