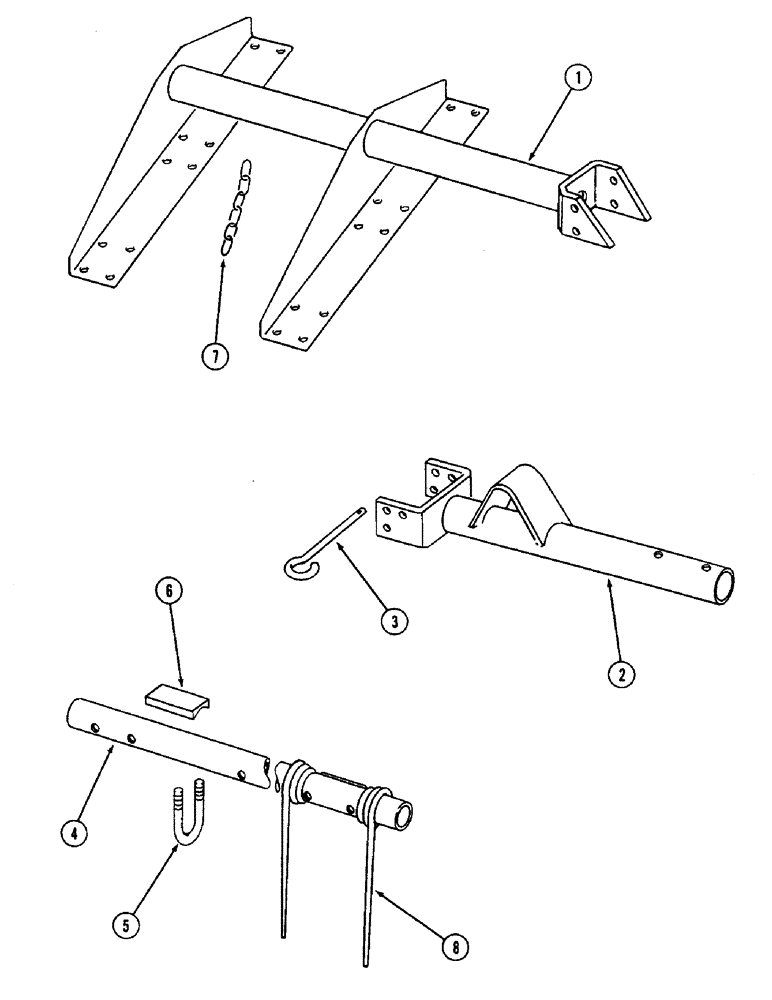

Запчасти Case IH 4500 (9-088) - TOOLING EQUIPMENT, HINGED TYPE 3 FOOT 6 INCH MULCHERS, 2 BAR, FOR USE ON WING FRAMES (09) - CHASSIS/ATTACHMENTS

1

547849R1

FRAME

- left wing

1шт.

1

547850R1

FRAME - right wing

1шт.

2

547855R1

HINGE

SUPPORT - hinge

2шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC

6шт.

3

547856R1

PIN

- hinge

2шт.

480523R1

HAIR PIN COTTER

quick attachable

2шт.

4

547852R1

TUBE

- front and rear tooth bar

4шт.

5

547854R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT - tube clamping

16шт.

492-11038

LOCK WASHER,3/8"

32шт.

425-106

NUT,3/8"-16, Cl 5

32шт.

6

547853R1

CLAMP

- tube

8шт.

7

547857R1

CHAIN (AG)

CHAIN - frame retaining

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

2шт.

8

72901C1

TOOTH

- spring

12шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

24шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

24шт.
