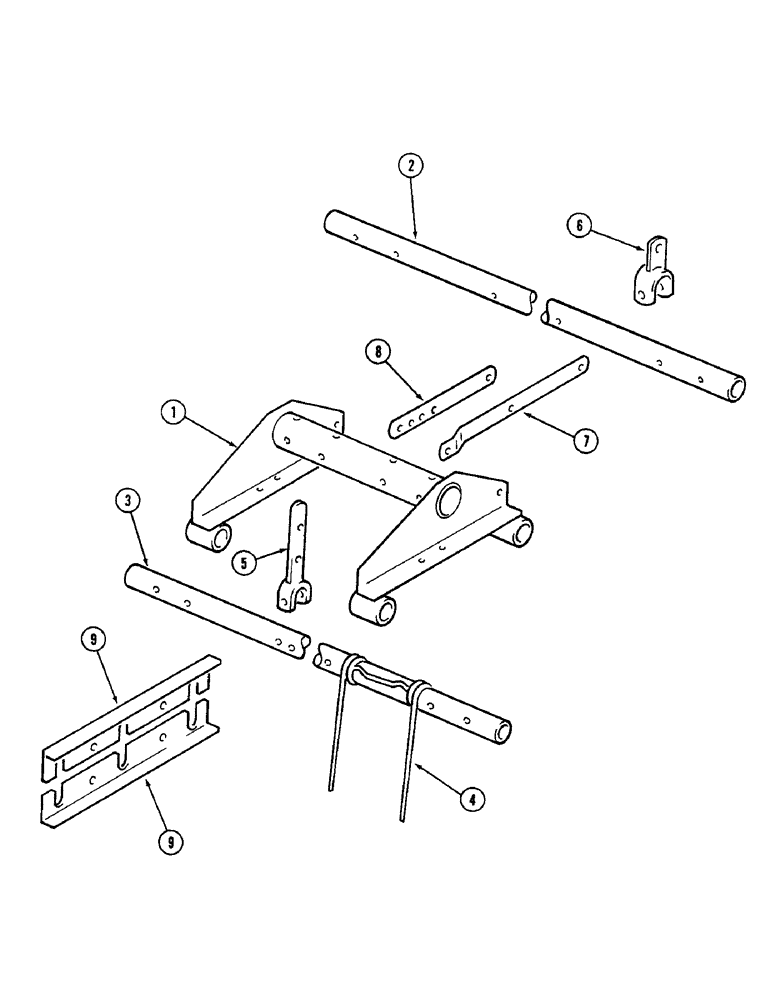

Запчасти Case IH 4500 (9-082) - TOOLING EQUIPMENT, 4 FOOT 9 INCH THROUGH 7 FOOT 3 INCH MULCHER, 2 BAR, 4 FOOT 9 INCH MULCHERS (09) - CHASSIS/ATTACHMENTS

1

485615R2

FRAME

ASSEMBLY - mulchers

1шт.

2

485596R1

TUBE

- front tooth bar

1шт.

3

485597R1

TUBE

- rear tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring

8шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

16шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

16шт.

1

485616R2

FRAME

ASSEMBLY - mulchers, 6 foot

1шт.

2

485599R1

TUBE

- front tooth bar, 6 foot mulchers

1шт.

3

485600R1

TUBE

- rear tooth bar, 6 foot mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 6 foot mulchers 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring, 6 foot mulchers

10шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 6 foot mulchers

20шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 6 foot mulchers

20шт.

1

490549R1

FRAME

ASSEMBLY - mulchers, 7 foot 6 inch

1шт.

2

490550R1

TUBE

- front tooth bar, 7 foot 6 inch mulchers

1шт.

3

490551R1

TUBE

- rear tooth bar, 7 foot 6 inch mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 7 foot 6 inch mulchers 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring, 7 foot 6 inch mulchers

12шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 7 foot 6 inch mulchers

24шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 7 foot 6 inch mulchers

24шт.

5

485592R1

ARM

HANDLE ASSEMBLY - frame, all mulcher sizes

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, all mulcher sizes

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, all mulcher sizes

1шт.

6

485601R1

ARM

POST ASSEMBLY - front tooth bar, all mulcher sizes

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, all mulcher sizes

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, all mulcher sizes

1шт.

7

485593R1

SUPPORT

BRACE - handle reach, all mulcher sizes

1шт.

8

485594R1

BAR

- adjusting reach, all mulcher sizes

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch, all mulcher sizes

4шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch, all mulcher sizes

3шт.

432-1016

COTTER PIN,5/32" x 1"

all mulcher sizes 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable, all mulcher sizes

1шт.

9

485598R1

SUPPORT

RAIL - center, all mulcher sizes

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, all mulcher sizes

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , all mulcher sizes 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, All mulcher sizes

2шт.
