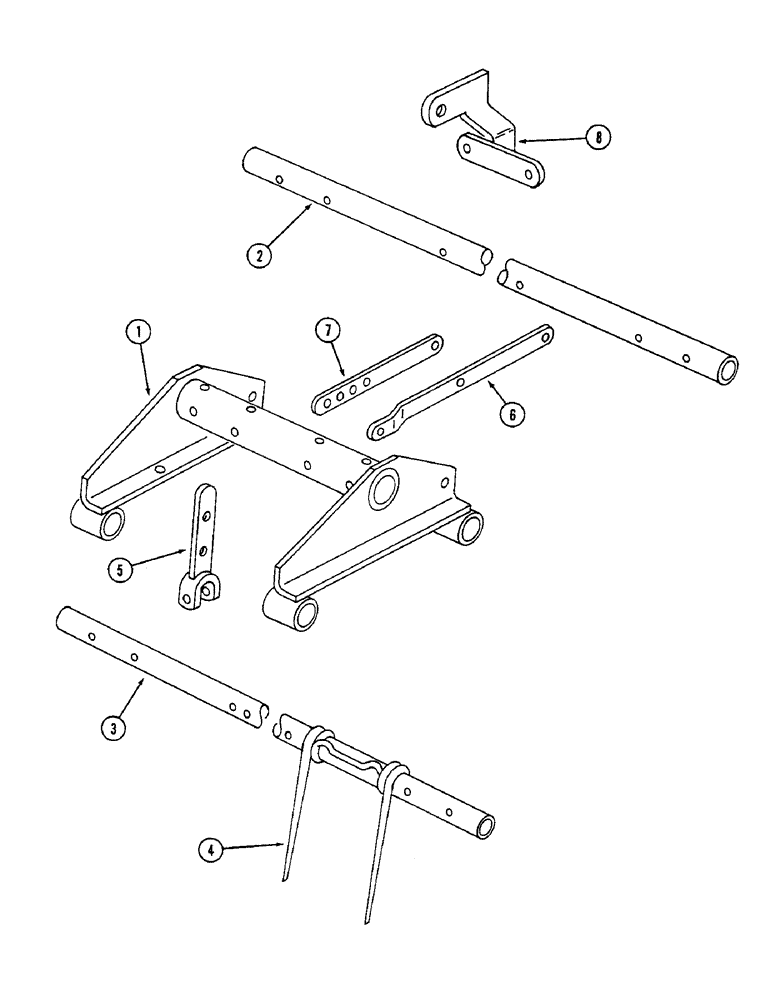

Запчасти Case IH 4500 (9-080) - TOOLING EQUIPMENT, 3 FOOT 6 INCH MULCHERS, 2 BAR (09) - CHASSIS/ATTACHMENTS

1

485614R2

FRAME

ASSEMBLY - mulchers

1шт.

2

485589R1

TUBE

- front tooth bar

1шт.

3

485590R1

TUBE

- rear tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring

6шт.

485591R1

SPACER

BUSHING - tooth

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

10шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

12шт.

5

485592R1

ARM

HANDLE ASSEMBLY - frame

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC

1шт.

6

485593R1

SUPPORT

BRACE - handle reach

1шт.

7

485594R1

BAR

- adjusting reach

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch

4шт.

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

3шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

8

485595R1

SUPPORT

- front post

1шт.
