Запчасти Case IH 4500 (8-006) - HYD. SYS., TRAIL BEHIND MODELS, C FRAME LIFT, HYD. CYL. W/ DUAL FRONT PORTS, MACHINES W/O MULCHERS (08) - HYDRAULICS

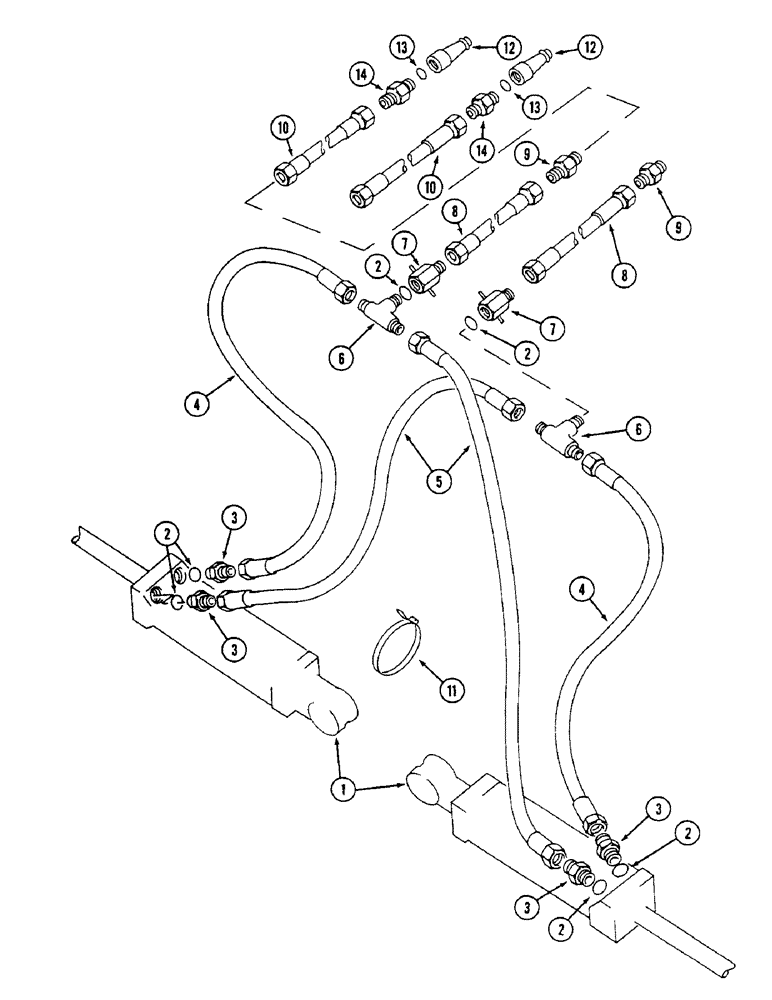

Схема запчастей Case IH 4500 - (8-006) - HYD. SYS., TRAIL BEHIND MODELS, C FRAME LIFT, HYD. CYL. W/ DUAL FRONT PORTS, MACHINES W/O MULCHERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, for 16 foot 6 inch to 19 foot 6 inch basic sizes (See page 8-27 or 8-31)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 3 x 8 inch, for 16 foot 6 inch to 21 foot 6 inch basic sizes (See page 8-39 or 8-41)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 3-1/2 x 8 inch, for 20 foot 6 inch basic size and larger (See page 8-67 or 8-87)

2шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - cotter, quick attachable

4шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, for 16 foot 6 inch to 18 foot 6 inch basic sizes (See page 8-27 or 8-31), machines with mulchers

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 3 x 8 inch, for 16 foot 6 inch to 20 foot 6 inch basic sizes (See page 8-39 or 8-41), machines with mulchers

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 3-1/2 x 8 inch, for 19 foot 6 inch basic size and larger (See page 8-67 or 8-87), machines with mulchers

2шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch, machines with mulchers

4шт.

520175R1

CLIP

PIN - cotter, quick attachable, machines with mulchers

4шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, All machines

6шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, all machines 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

4

813537C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 65 inch, all machines

2шт.

5

813267C1

HOSE

- hydraulic, 3/8 x 55 inch, all machines

2шт.

6

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- adjustable, 1/2 inch, all machines

2шт.

7

814056C1

VALVE

- hydraulic restrictor, all machines

2шт.

8

813267C1

HOSE

- hydraulic, 3/8 x 55 inch, all machines

2шт.

9

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare, all machines

2шт.

10

810250C1

HOSE

- hydraulic, 3/8 x 114 inch, all machines

2шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch, all machines

8шт.

12

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type, all machines

2шт.

12

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type, all machines

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, All machines

2шт.

14

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, all machines 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

Выбрано товаров: 24
