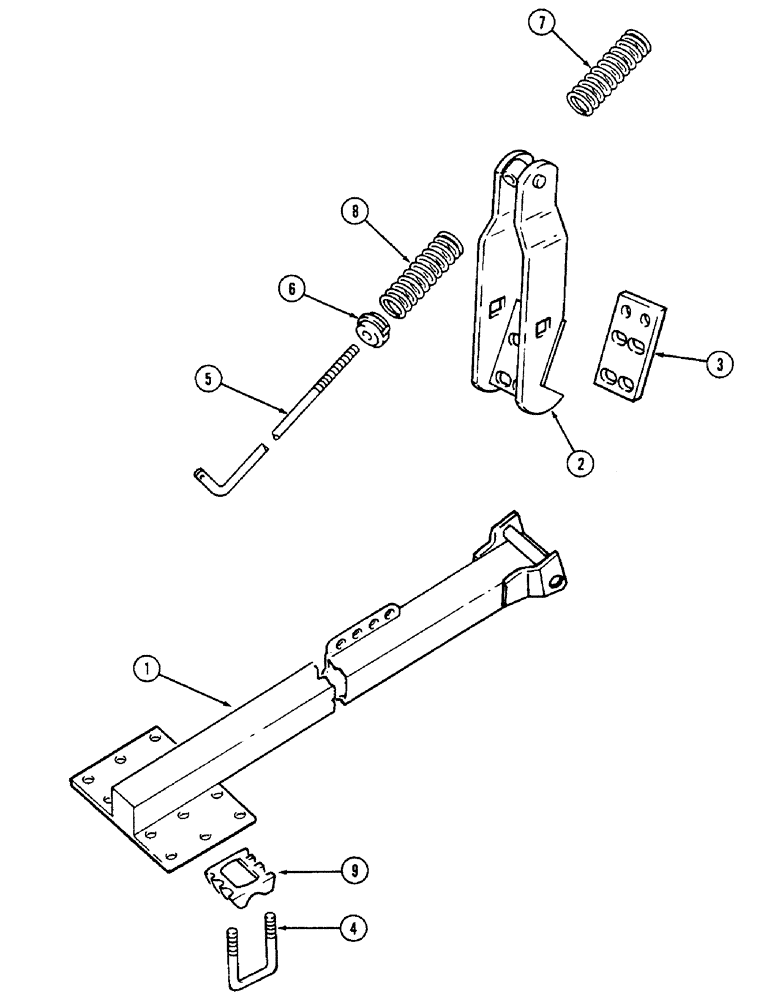

Запчасти Case IH 4500 (9-078) - TOOLING EQUIPMENT, MULCHER CARRIER ARM, ALL MODELS (09) - CHASSIS/ATTACHMENTS

1

812223C1

ARM

ASSEMBLY - carrier

1шт.

2

812224C1

BRACKET

ASSEMBLY - attaching

1шт.

18741R1

BOLT

- round head square neck, 3/4 NC x 6 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4 inch NC

1шт.

3

812225C1

BAR

PLATE - bracket mounting clamp

1шт.

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 NC x 6 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

4

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - carrier arm

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

596580R1

ROD

- compression

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, 3/4 inch NC

2шт.

6

1431BX

COLLAR CLAMP

COLLAR ASSEMBLY - compression rod

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch

1шт.

7

485611R1

SPRING

- compression, top

1шт.

8

596574R1

SPRING

- compression, bottom

1шт.

9

490687R1

CLAMP

- tail plate

2шт.
