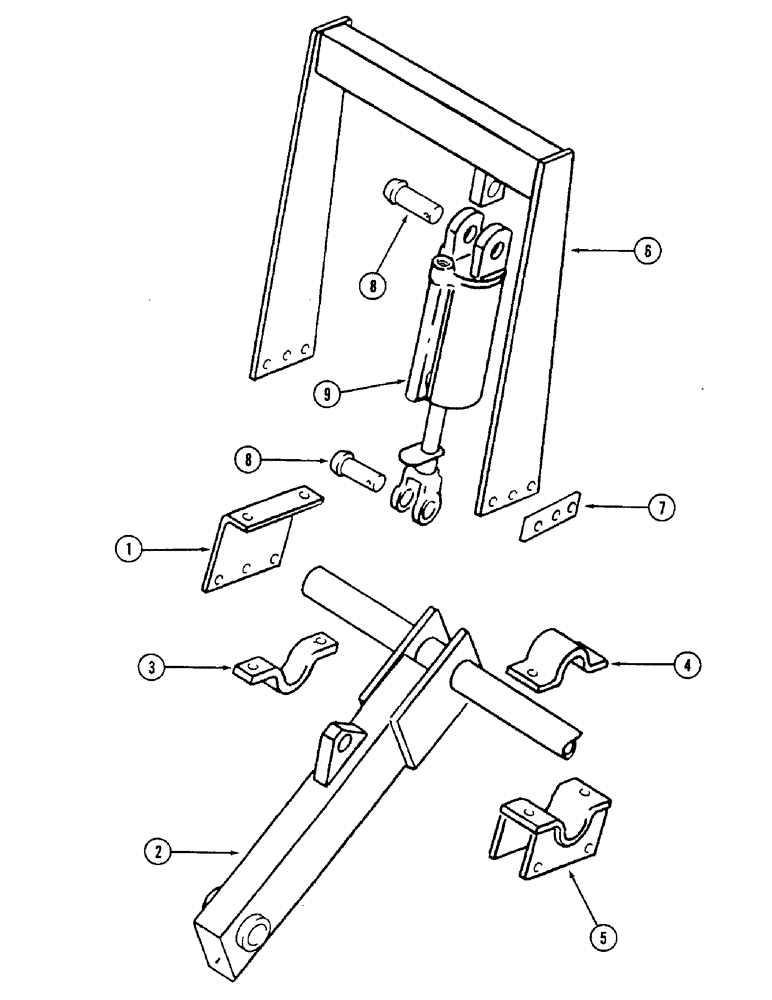

Запчасти Case IH 4500 (9-074) - MAIN FRAME DEPTH CONTROL AND ROCKSHAFT, WING TYPE MODELS (09) - CHASSIS/ATTACHMENTS

1

813361C1

SUPPORT

- rockshaft outer

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

2

813410C2

ROCKSHAFT

ASSEMBLY - main frame, 22 foot 6 inch basic size

1шт.

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch

1шт.

2

813436C2

ROCKSHAFT

ASSEMBLY - main frame, 31 foot 6 inch basic size

1шт.

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch

1шт.

3

591526R1

CLAMP

- rockshaft outer

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

4

810179C1

CLAMP

- rockshaft inner (Replaces 813056C1)

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

5

810645C1

SUPPORT

ASSEMBLY - rockshaft inner (Replaces 813473C2)

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

6

813465C1

SUPPORT

ASSEMBLY - main wheel master cylinder, left

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

3шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

6

813466C1

SUPPORT

ASSEMBLY - main wheel master cylinder, right

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

3шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

7

813259C1

BAR

- cylinder support, reinforcing

2шт.

8

810751C1

PIN

- headed, 1 x 3-1/4 inch

2шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - depth control (See page 8-17, 8-19, 8-21 or 8-23)

1шт.
