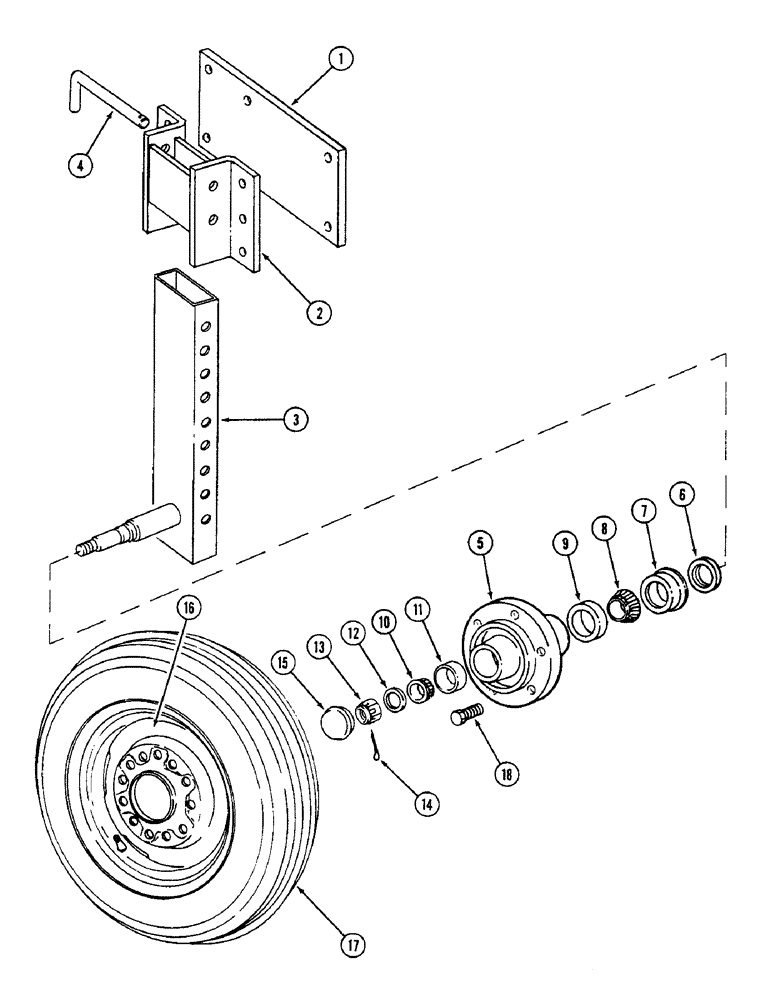

Запчасти Case IH 4500 (9-072) - PNEUMATIC GAUGE WHEEL MOUNTING, WHEEL, AND HUB, WING TYPE MODELS (09) - CHASSIS/ATTACHMENTS

1

813532C1

PLATE

- support mounting

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

2

1284036C1

SPROCKET ASSY.

BRACKET - axle assembly (Replaces 811945C1)

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

3

811542C92

AXLE

ASSEMBLY - gauge wheel

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

4

811951C1

PIN

- axle locking

1шт.

591107R1

COTTER PIN

- cotter, quick attachable

1шт.

5

810087C2

HUB

- wing wheel

1шт.

6

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

7

472222R1

SLEEVE

- wear, oil seal

1шт.

8

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, inner

1шт.

9

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, inner

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

13

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

15

663906R1

CAP

- wheel hub

1шт.

16

T53527

WHEEL

- 15 x 5 inch KB (Replaces 622192R1)

1шт.

17

TIRE - 7.60L - 14, 4 ply, tubeless

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

18

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex, conical, 1/2 NF x 15/16 inch

6шт.

811769C1

PACKAGE - tire valve guard (Includes 12 guards and fitting instructions)

1шт.
