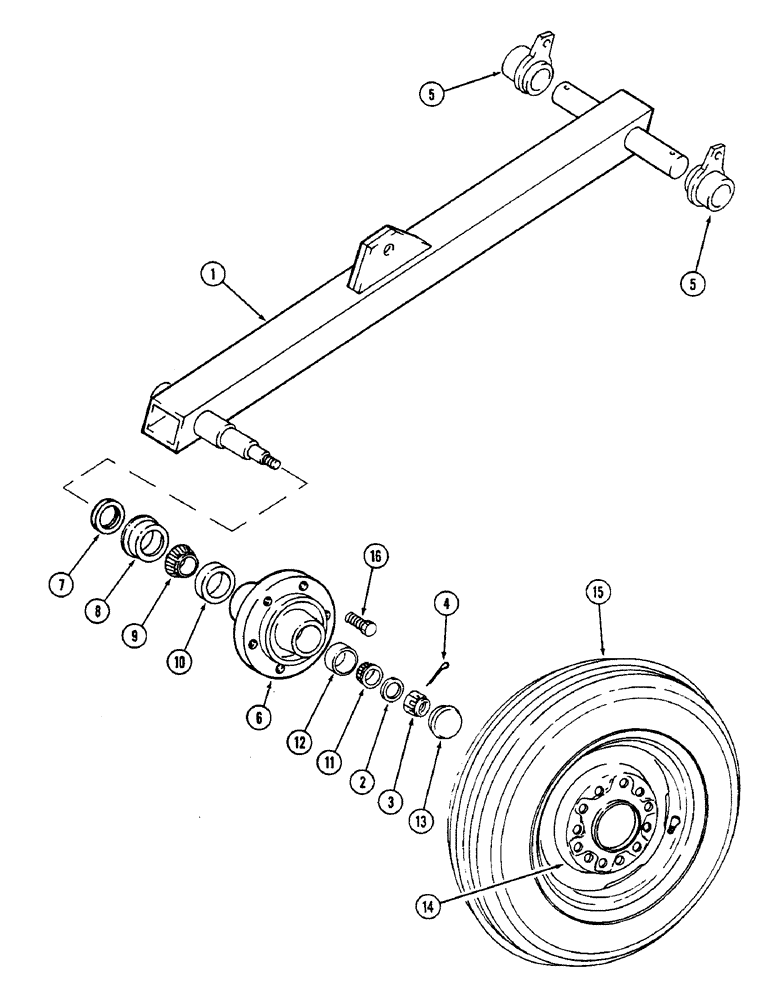

Запчасти Case IH 4500 (9-070) - WING FRAME AXLE, WHEEL AND HUB WING TYPE MODELS (09) - CHASSIS/ATTACHMENTS

1

811057C91

AXLE

ASSEMBLY - wing wheel, left

1шт.

1

811058C91

AXLE

ASSEMBLY - wing wheel, right

1шт.

2

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

3

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

4

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

2шт.

108659

PIN

- cotter, 5/16 x 2-3/4 inch

2шт.

5

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING - axle pivot

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

6

810087C2

HUB

- wing wheel

1шт.

7

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

8

472222R1

SLEEVE

- wear, oil seal

1шт.

9

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, inner

1шт.

10

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, inner

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

13

663906R1

CAP

- wheel hub

1шт.

14

811389C1

RIM

WHEEL - 14 x 6 inch KB

1шт.

15

TIRE - 8.50L - 14, 4 ply, tubeless

1шт.

810768C1

VALVE

- tubeless tire, steel

1шт.

16

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex, conical, 1/2 NF x 15/16 inch

6шт.

811382C1

PACKAGE

- tire valve guard (Includes 12 guards and fitting instructions)

1шт.
