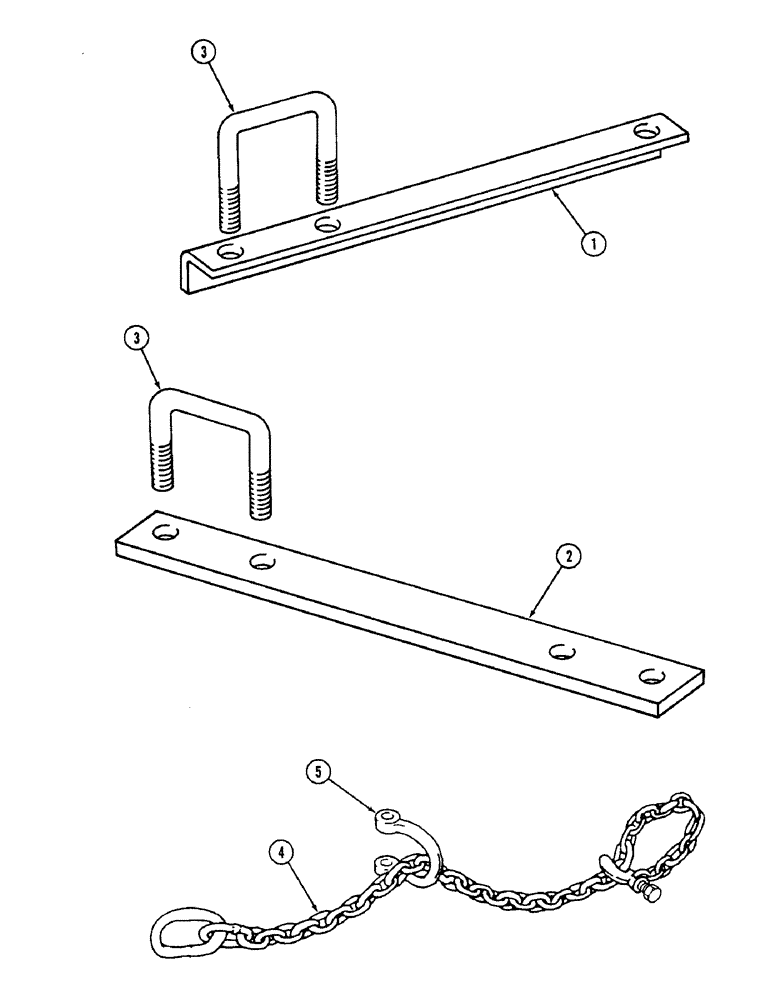

Запчасти Case IH 4500 (9-066) - TRAILING HITCH AND SAFETY CHAIN, WING TYPE MODELS (09) - CHASSIS/ATTACHMENTS

1

591653R2

ANGLE

- hitch

1шт.

2

591654R1

BAR

- hitch

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

3

592406R1

BOLT,U, 3/4" - 10 x 4.62"

U-BOLT - hitch clamping

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

4

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch (10000 lbs)

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

5

148558C1

CLEVIS

- safety chain (Replaces S9173A)

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

20033R1

LOCK NUT

NUT - hex, lock, 5/8 inch NC

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

22244R1

LOCK NUT

- hex, lock, 3/4 inch NC

1шт.
