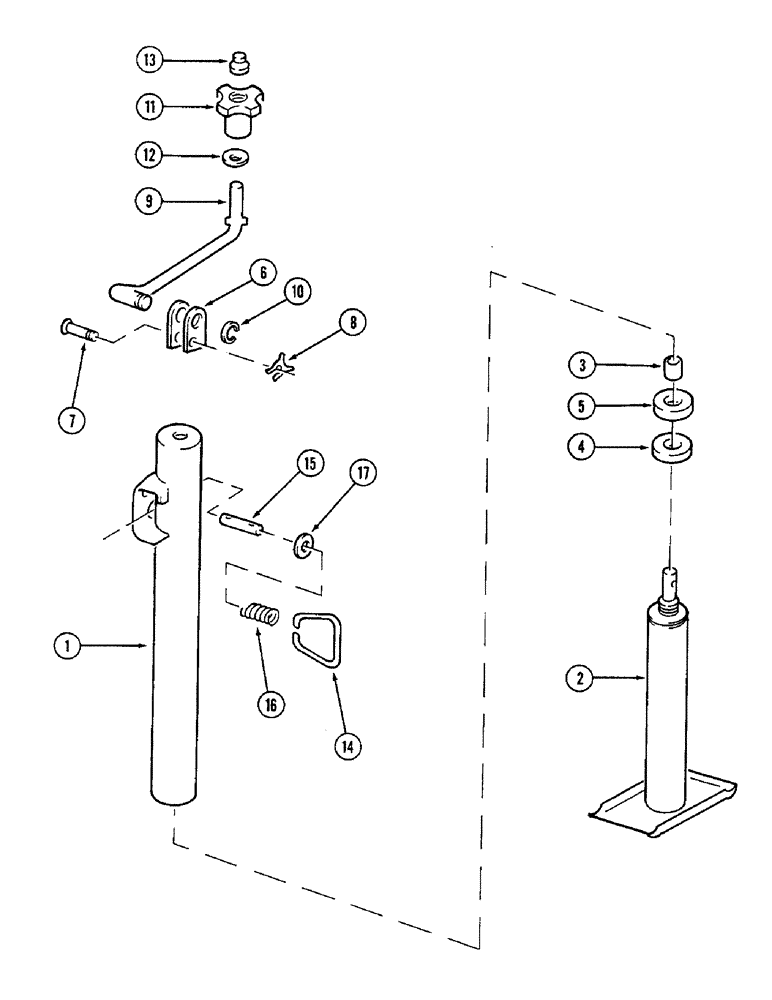

Запчасти Case IH 4500 (9-064) - TRACTOR HITCH JACK, WING TYPE MODEL (09) - CHASSIS/ATTACHMENTS

813274C91

JACK

ASSEMBLY - hitch

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - jack outer

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - jack inner and base (Order 813274C91 jack assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - jack screw

1шт.

4

59113C1

THRUST WASHER

- - thrust

1шт.

5

59111C91

THRUST BEARING

BEARING - thrust

1шт.

6

62844C1

SUPPORT

- screw cap

1шт.

7

59106C1

PIN

- crank

1шт.

8

277395R1

RETAINER

WASHER - pin retainer

1шт.

9

1256366C1

CRANK

ASSEMBLY - (Replaces 62843C1)

1шт.

10

62845C1

RING

- crank retaining

1шт.

11

T53925

KNOB

- crank (Replaces 62841C1)

1шт.

12

59102C1

WASHER

- knob

1шт.

13

1256366C1

CRANK

CAP - knob

1шт.

14

204658C1

HOOK - plunger pull ring

1шт.

15

204654C1

PLUNGER

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

16

204655C1

SPRING - plunger

1шт.

17

59102C1

WASHER

- spring

1шт.
