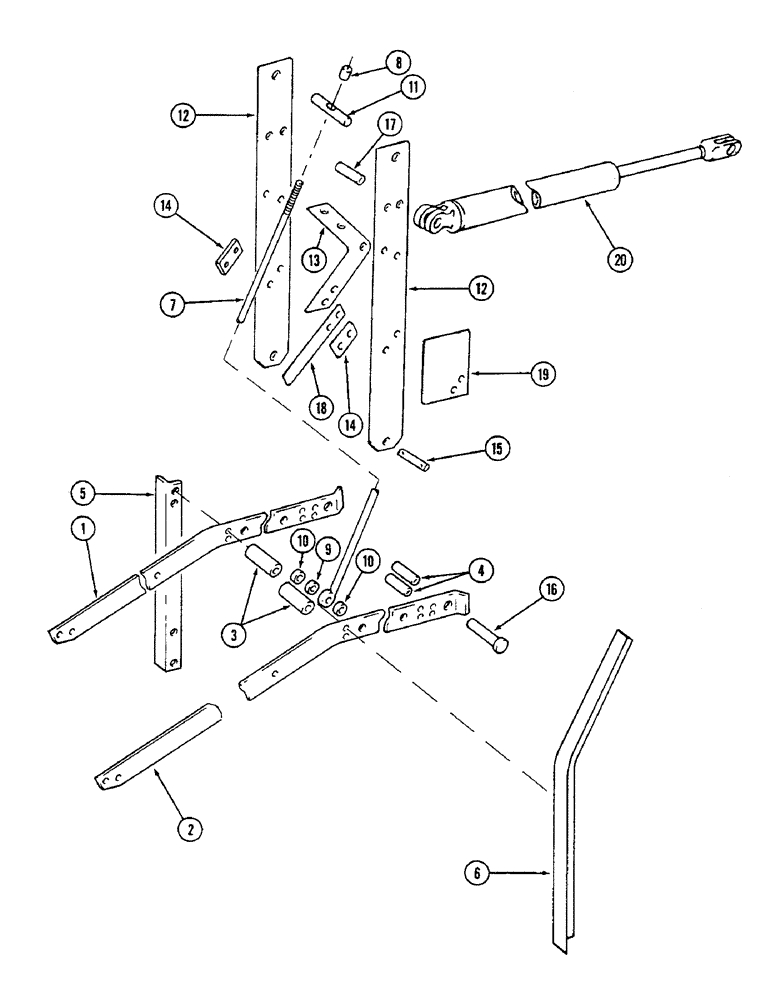

Запчасти Case IH 4500 (9-060) - WING LIFT UNIT, WING TYPE MODELS, 31 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

812596C3

SUPPORT - wing frame lift, front left and rear right

1шт.

2

812597C3

SUPPORT

- wing frame lift, front right and rear left

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

3

H39274

SPACER,1/2" Pipe x 1 1/2"

- 1/2 x 1-1/2 inch

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

871623R1

SPACER - 1/2 x 2-3/4 inch (Standard pipe) (No Longer Available)

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

813353C1

ANGLE

- wing lift support, front left and rear right

1шт.

6

813269C1

ANGLE

- wing lift support, front right and rear left

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

7

812600C3

ROD

- wing lift control

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, lock, 3/4 inch NC

4шт.

8

813135C1

SPACER

- control rod

1шт.

9

604577R1

SPACER

BUSHING - control rod

2шт.

10

140226H1

WASHER

SPACER- - control rod

4шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

11

813424C2

PIN

- control rod

2шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

- cotter, 5/16 x 2-1/2 inch

4шт.

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

4шт.

12

812593C1

BAR

- control arm support

4шт.

13

812592C1

ARM - wing lift control

4шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

14

812730C1

BAR

- arm spacer

2шт.

15

813039C1

PIN

- pivot, 1 x 3-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

21696R1

SPACER,1" Pipe x 1 3/8"

- 1 x 1-3/8 inch

2шт.

16

21679R1

HEADED PIN,1" x 3 3/4"

PIN - lift support, transport

2шт.

486830R1

COTTER PIN

PIN - cotter, quick attachable

2шт.

17

H39274

SPACER,1/2" Pipe x 1 1/2"

- 1/2 x 1-1/2 inch

4шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

813271C1

BAR

- wing lower stop

2шт.

19

813272C1

BAR

- wing lift stop

2шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - (See page 8-15)

1шт.
